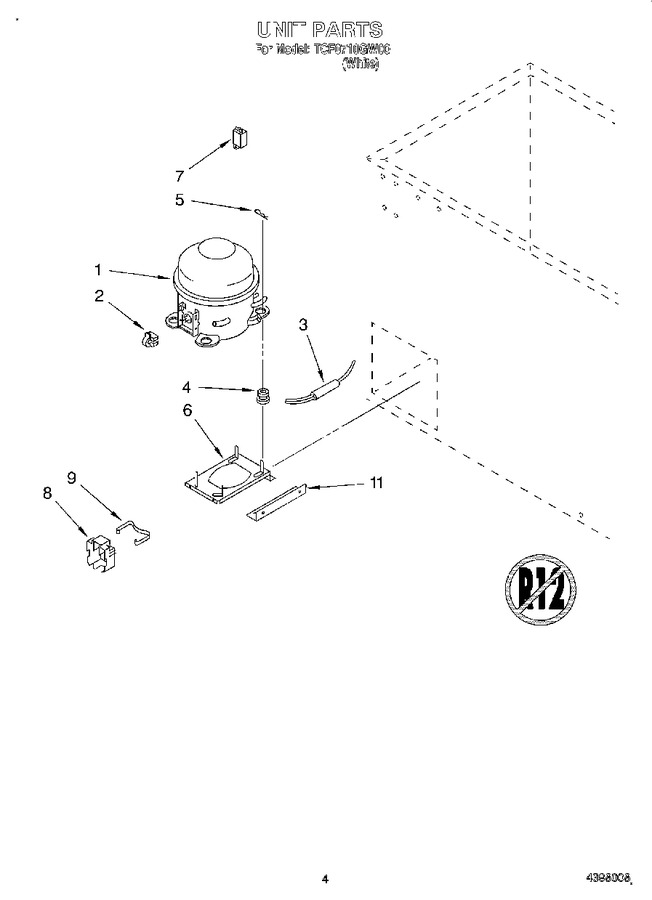

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356593 | Compressor (includes Items 2, 3, 4, 5, 8 & 9) |
|
- | |||||
| 2 | 4356415 | Relay |
|
- | |||||
| 3 | 4001 | Drier (Replaces: 4356675) |
|
Immediately | $ 9.64 | ||||
| 4 | 4356335 | Grommet, Mounting Compressor |
|
- | |||||
| 5 | 4356336 | Clip, Hitch Pin |
|
- | |||||
| 6 | 4356590 | Base, Compressor |
|
- | |||||
| 7 | WPW10662129 | Capacitor (Replaces: 4390503) |
|
Immediately | $ 52.97 | ||||
| 8 | 4356587 | Cover |
|
- | |||||
| 9 | 4356406 | Clip, Cover |
|
- | |||||
| 11 | 3-81556-001 | Brace (Replaces: 4356672) |
|
- |
