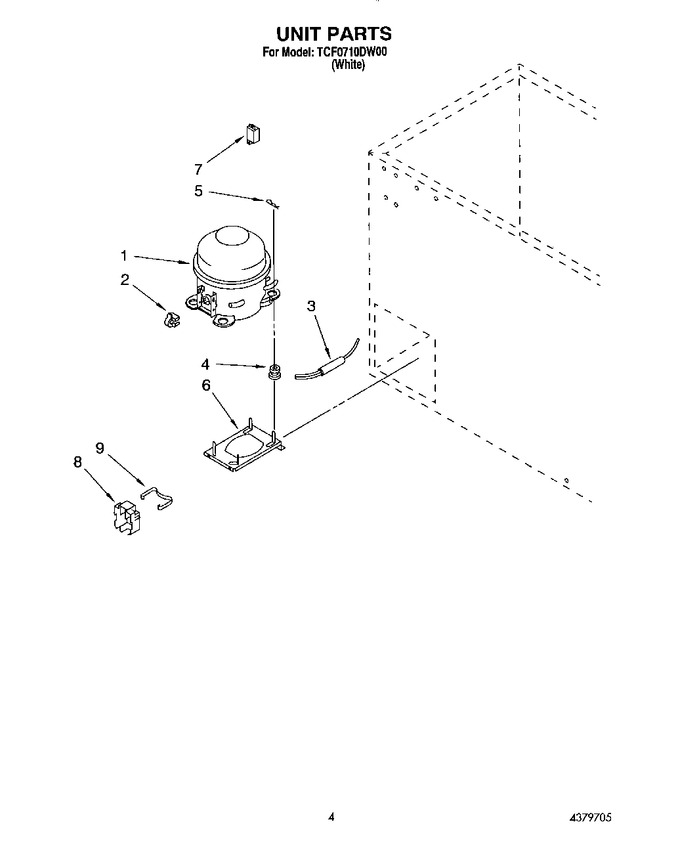

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | EMI55ER1 | Compressor (Replaces: 4356527) |
|
$ 288.96 | |||||
| 2 | 4356415 | Relay |
|
- | |||||
| 3 | 4007A | Drier (Replaces: 4356332) |
|
Immediately | $ 13.55 | ||||
| 4 | 4356335 | Grommet, Mounting Compressor |
|
- | |||||
| 5 | 4356336 | Clip, Hitch Pin |
|
- | |||||
| 6 | 4356337 | Base, Compressor |
|
- | |||||
| 7 | WPW10662129 | Capacitor (Replaces: 4390503) |
|
Immediately | $ 52.97 | ||||
| 8 | 4356405 | Cover |
|
- | |||||
| 9 | 4356406 | Clip, Cover |
|
- |
