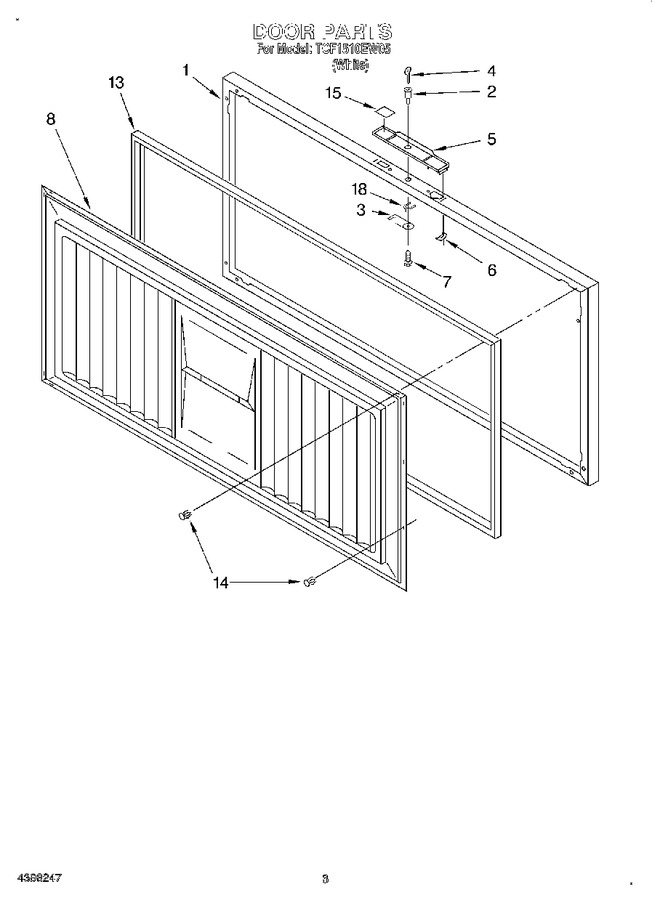

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356658 | Exterior Door Panel (includes Insulation) |
|
- | |||||
| 2 | 3-35284-001 | Lock (Replaces: 4356691) |
|
$ 24.42 | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (Replaces: 4356608) |
|
$ 57.10 | |||||
| 4 | 4356304 | Key |
|
- | |||||
| 5 | 4356657 | Handle |
|
$ 110.02 | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 7 | W11233072 | Screw (Replaces: 4356609) |
|
Immediately | $ 12.62 | ||||
| 8 | 4356536 | Interior, Door Panel |
|
- | |||||
| 13 | WP4-35260-005 | Gasket (Replaces: 4356693) |
|
$ 287.65 | |||||
| 14 | 4356703 | Clip, Gasket |
|
$ 43.62 | |||||
| 15 | 4356630 | Nameplate |
|
- | |||||
| 18 | 4356493 | Clip, Spring |
|
- |
