SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

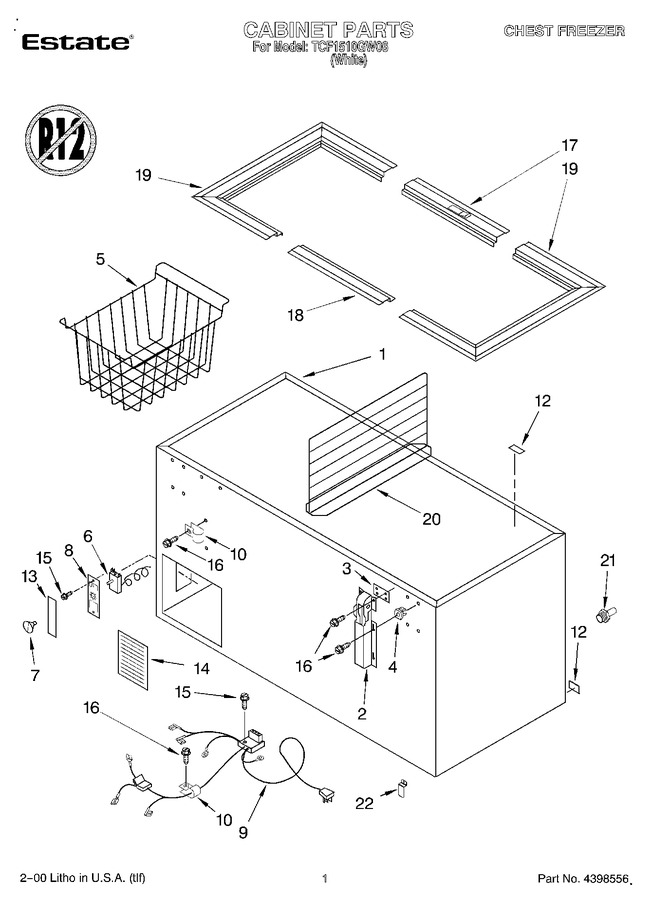

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356723		Hinge, Assembly				$ 174.99
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4356670)				$ 148.16
7	4356585		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356674)		Appelez-nous	-
9	4356733		External, Wiring Harness		Appelez-nous	-
10	488946		Clip   (Replaces: 4356643)				$ 18.41
12	4356456		Drain Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4-35011-004		Front, Breaker Strip   (Replaces: 4356637)				$ 75.80
18	4-35010-004		Rear, Breaker Strip   (Replaces: 4356636)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356635)				$ 80.74
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Drain, Adapter   (Replaces: 4356481)				$ 15.45
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	4356728		Clip		Appelez-nous	-
22	4356703		Clip, Gasket (kit Of 60)				$ 43.62
22	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT4356765		Energy Label		Appelez-nous	-
	LIT4356739		Owner`s Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
