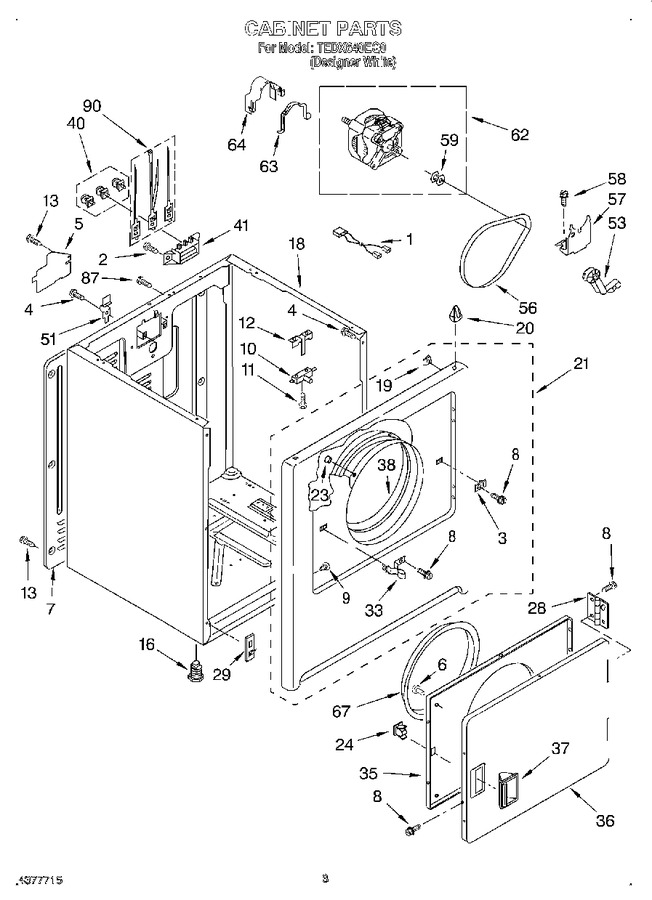

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3406105 | Harness, Wiring (door Switch) (Replaces: 3405104) |
|
Immediately | $ 33.21 | ||||
| 2 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 3 | WP3403630 | Plug, Strike Hole (white) (Replaces: 3403630) |
|
$ 6.78 | |||||
| 4 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 539.78 | ||||
| 6 | 238614 | Bumper |
|
$ 72.68 | |||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 6.81 | |||||
| 9 | WP3404413 | Plug, Hinge Hole (4) (white) (Replaces: 3404413) |
|
Immediately | $ 7.16 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 12 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 7.28 | ||||
| 13 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 18 | 3399580 | Cabinet Assembly (includes Illus. Nos. 5, 7, 16, 29, 41 & 57) (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 21 | 3403571 | Front Panel Assembly (white) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 5.58 | ||||
| 28 | WPW10362431 | Hinge And Pin Assembly (2) (Replaces: 3405514) |
|
Immediately | $ 7.12 | ||||
| 29 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 35 | 3403371 | Door, Rear |
|
$ 77.01 | |||||
| 36 | WP3403361 | Door Front (white) (Replaces: 3403361) |
|
$ 163.31 | |||||
| 37 | WP3405184 | Handle, Door (white) (Replaces: 3405184) |
|
$ 68.41 | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349464) |
|
Immediately | $ 67.07 | ||||
| 40 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 41 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 20.72 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.03 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 3401143) |
|
Immediately | $ 45.92 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 3395652) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 64 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.04 | ||||
| 67 | W10861521 | Seal, Door (Replaces: 3405245) |
|
Immediately | $ 52.82 | ||||
| 87 | W10850756 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 697776) |
|
$ 6.98 | |||||
| 90 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 40) |
|
Immediately | $ 90.89 |
