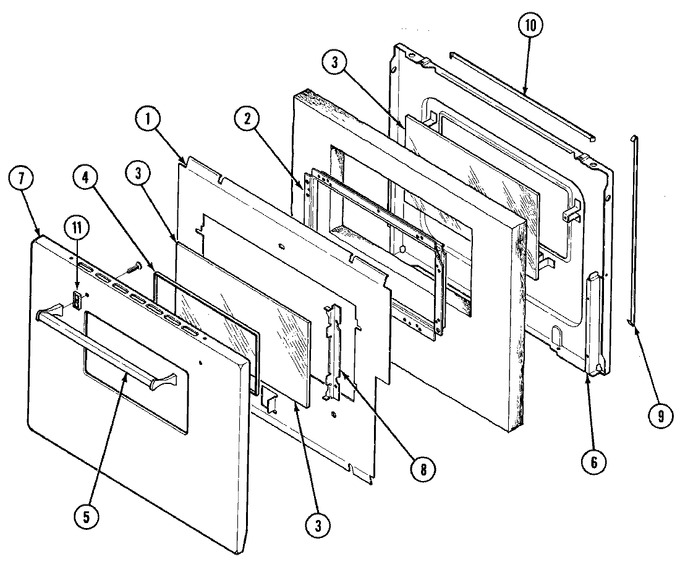

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door | 01 |
|
- | ||||
| 2 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 2 | 3603F013-70 | Frame, Window | 01 |
|
- | ||||
| 3 | 7902P017-60 | Glass | 01 |
|
- | ||||
| 4 | 7902P051-60 | Glass | 01 |
|
- | ||||
| 5 | 7701P122-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 6 | 2402W133-19 | Lining, Door | 01 |
|
- | ||||
| 7 | 2401F052-74 | Panel, O.d. Almond | 01 |
|
- | ||||
| 8 | 3804F050-80 | Retainer | 01 |
|
- | ||||
| 9 | 7212P003-60 | Seal, Oven Door | 01 |
|
$ 46.94 | ||||
| 10 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 10 | 8010P028-60 | Spacer, Door Handle | 01 |
|
- | ||||
| 10 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 |
