SELECT A DIAGRAM

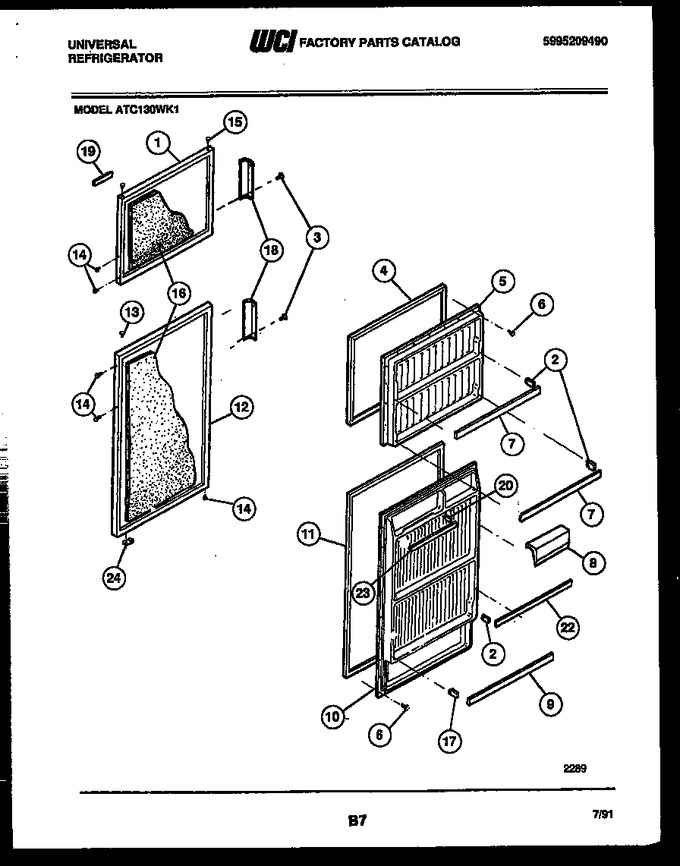

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916963		Freezer Door-white		Appelez-nous	-
2	3206165		End Cap-rh			Immediately	$ 8.19
3	5308013645		Screw, Handle Mtg (4)		Appelez-nous	-
4	5303001304		Gasket, Freezer		Appelez-nous	-
5	5303271486		Inner Panel - Freezer				$ 312.17
6	5308002748		Screw		Appelez-nous	-
7	5303272149		Door Rack - Freezer - (2)		Appelez-nous	-
8	5303206149		Dairy Door		Appelez-nous	-
9	5303272143		Door Rack - Refr		Appelez-nous	-
10	5303276182		Inner Panel - Refr		Appelez-nous	-
11	5303270902		Gasket - Refrigerator		Appelez-nous	-
12	5303916960		Refrigerator Door - White		Appelez-nous	-
13	3206153		Bearing-hinge (8)		Appelez-nous	-
14	240494001		Plug - White (6)   (Replaces: 5308000090)			Immediately	$ 18.20
15	5308000134		Plug-white (2)				$ 5.62
16	5303007739		Insulation-bulk-fiberglass		Appelez-nous	-
17	3206151		End Cap-lh (2)		Appelez-nous	-
18	5308009875		Handle-refr-frzr		Appelez-nous	-
19	5303276130		Nameplate Assy		Appelez-nous	-
20	3206156		End Cap-rh		Appelez-nous	-
22	5303276153		Door Rack - Refr		Appelez-nous	-
23	5303276154		Door Rack - Refr - Short		Appelez-nous	-
24	5308000255		Door Stop (2)				$ 42.20
*47773	5308011745		Screw				$ 10.38
17A	3206150		End Cap-rh (2)				$ 12.58
20A	3206157		End Cap-lh		Appelez-nous	-
2A	3206166		End Cap-lh			Immediately	$ 9.93

    View Diagram in Separate Window       Print Part List
