SELECT A DIAGRAM

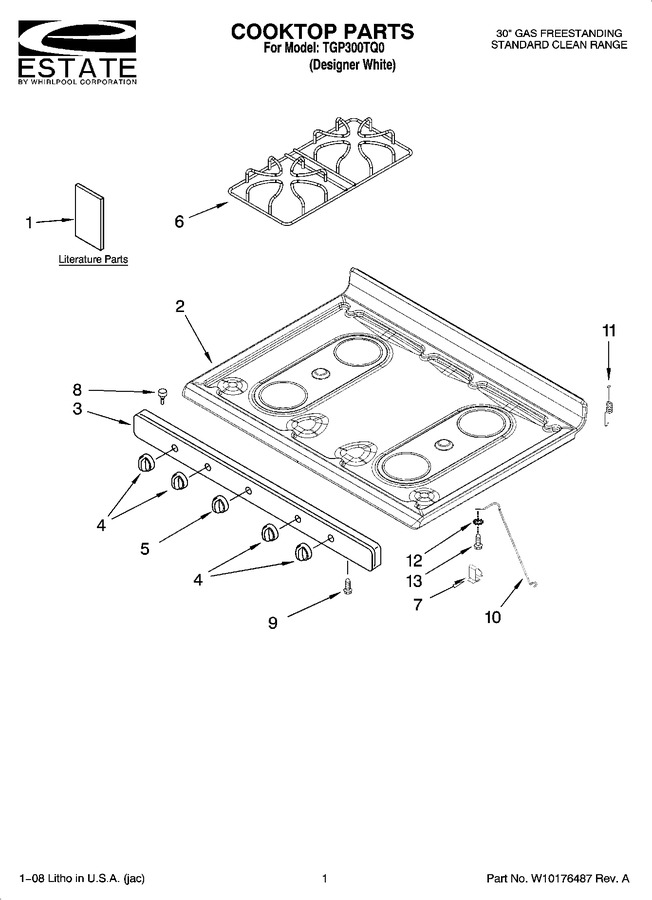

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10121806		Instructions Installation		Appelez-nous	-
1	98015589		Installation Instr (template)		Appelez-nous	-
1	W10121807		Guide, Use & Care		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
2	WPW10141521		Cooktop   (Replaces: W10141521)				$ 311.38
3	W10121802		Panel, Manifold		Appelez-nous	-
4	WP98006102		Knob, Burner (4)   (Replaces: 98006102)				$ 17.53
5	WP98008321		Knob, Thermostat   (Replaces: 98008321)				$ 18.06
6	WPW10180089		Grate, Burner (2)   (Replaces: W10133344)				$ 42.40
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
8	98004723		Bumper, Cooktop (2)		Appelez-nous	-
9	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62
10	W10143497		Rod, Supporting (left)		Appelez-nous	-
10	W10156802		Rod, Supporting (right)		Appelez-nous	-
11	W10132429		Spring, Cooktop (2)		Appelez-nous	-
12	98016879		Washer, Lock (2)		Appelez-nous	-
13	WP486754		Screw (2)   (Replaces: 98014402)				$ 6.75
