SELECT A DIAGRAM

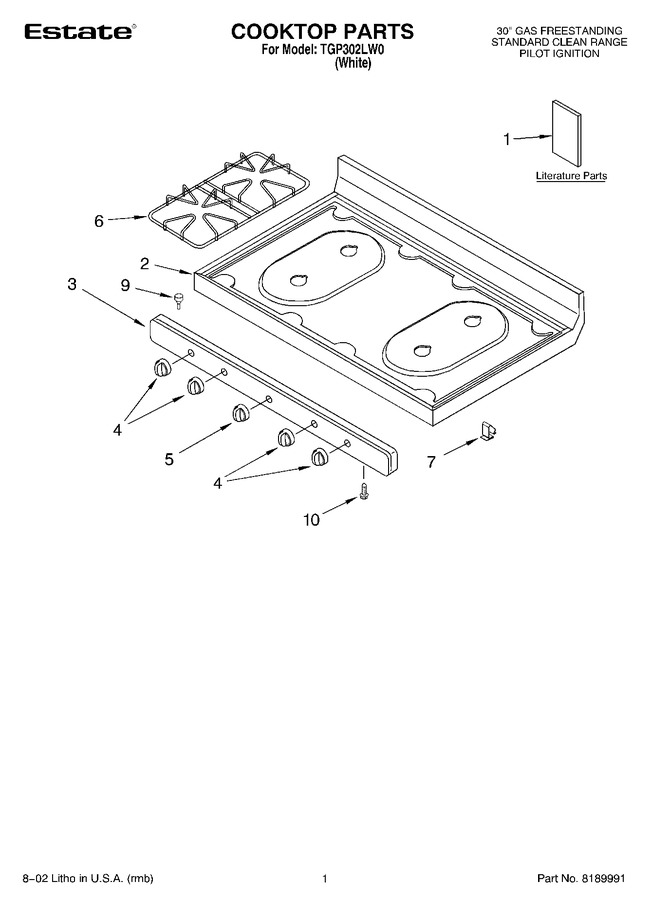

01 - Cooktop, Literature


02 - Backguard


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT98007134		Literature Parts (instructions Installation)		Appelez-nous	-
1	LIT98007121		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT98012561		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT98007130		Literature Parts (safer Cooking Tips)		Appelez-nous	-
2	98009707		Cooktop (white)		Appelez-nous	-
3	98012600		Panel, Manifold		Appelez-nous	-
4	WP98006100		Knob, Burner (4)   (Replaces: 98006100)				$ 18.09
5	98006101		Knob, Thermostat		Appelez-nous	-
6	8190014		Grate, Burner (2)   (Replaces: 98009281)		Appelez-nous	-
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
9	98004723		Bumper, Cooktop		Appelez-nous	-
10	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
