View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:

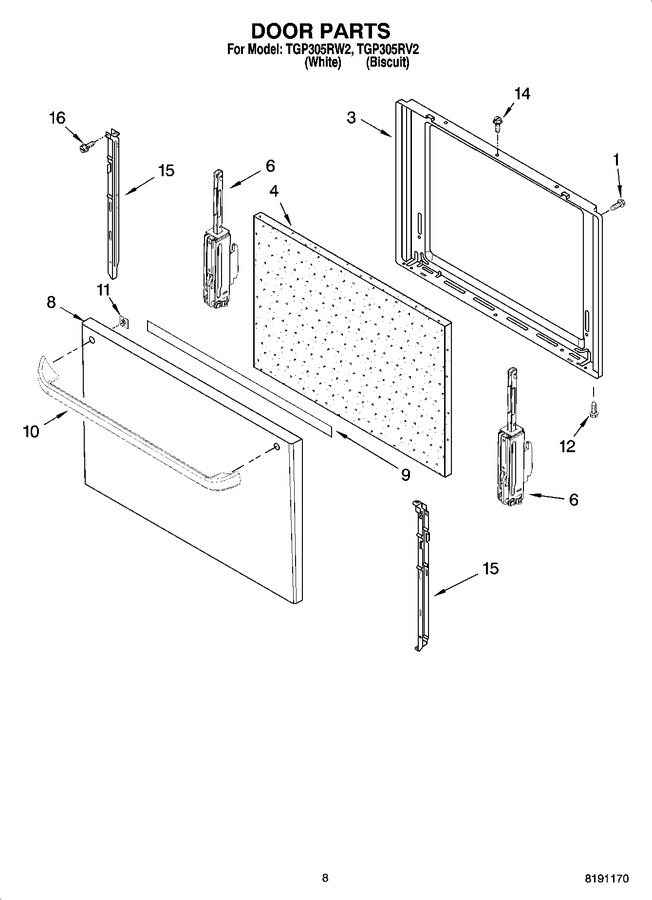

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533842 | Screw (Replaces: 8533842) |
|
$ 6.26 | |||||
| 3 | 98017966 | Liner, Door |
|
- | |||||
| 4 | 98006853 | Insulation, Door |
|
- | |||||
| 6 | 98017875 | Hinge, Door (right) |
|
$ 31.85 | |||||
| 6 | 98017873 | Hinge, Door (left) |
|
$ 34.24 | |||||
| 8 | 98017968T | Panel, Door (biscuit) |
|
- | |||||
| 8 | WP98017968W | Panel, Door (white) (Replaces: 98017968W) |
|
$ 201.88 | |||||
| 9 | 98017250 | Retainer, Upper (2) |
|
- | |||||
| 10 | W10819915 | Handle, Oven Door (Replaces: 98017915B) |
|
- | |||||
| 11 | 98017967 | Bracket, Handle (2) |
|
- | |||||
| 12 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 6.98 | |||||
| 14 | 3196166 | Screw (Replaces: 98006727) |
|
$ 6.31 | |||||
| 15 | 98004564 | Retainer (right) |
|
- | |||||
| 15 | 98004629 | Retainer (left) |
|
- | |||||
| 16 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 98012220 | Pin Kit-dr Removal |
|
$ 8.91 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| WPW10477747 | Anti-tip Kit (Replaces: 98017833) |
|
$ 19.61 | ||||||
| WP3391018 | Cable Tie-push Mnt (Replaces: 3391018) |
|
$ 28.66 | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 8316781 | Wire, Black 14 Ga. 150 C |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 98014534 | Harness, T-stat (Replaces: 6610434) |
|
- | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 98015022 | Bushing, Snap (2) |
|
- | ||||||
| 549193 | Clamp, Cord (Replaces: 98005894) |
|
$ 12.05 |
