01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts

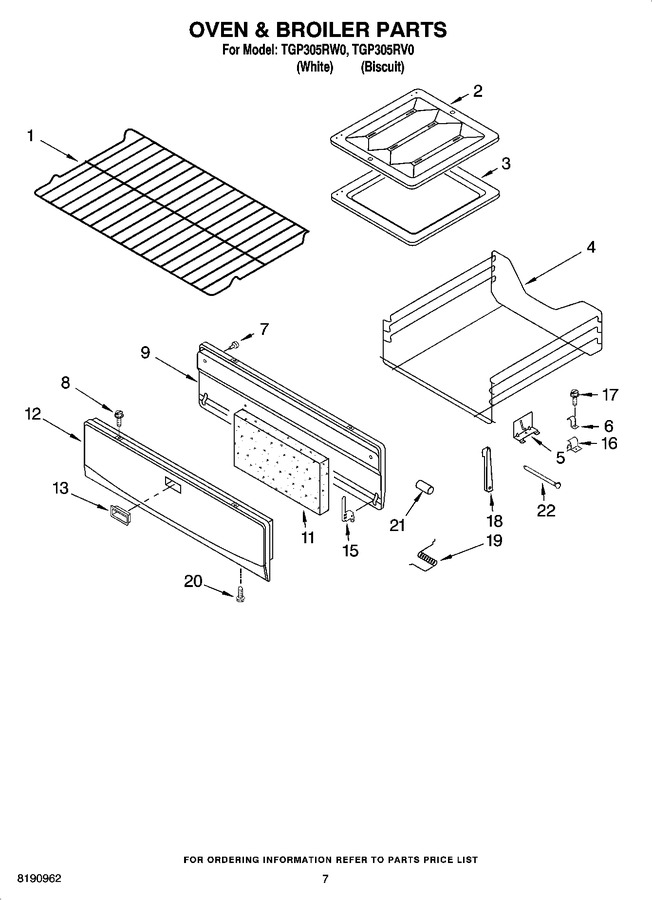

05 - Oven & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98014136 | Rack, Oven (2) |
|
- | |||||
| 2 | WP98003480 | Grill, Broiler (Replaces: 98003480) |
|
$ 89.69 | |||||
| 3 | WP98016005 | Pan, Broiler (Replaces: 98016005) |
|
$ 77.97 | |||||
| 4 | 98016570 | Rack, Broiler |
|
- | |||||
| 5 | 98004761 | Bracket, Rack |
|
- | |||||
| 6 | 98004715 | Guide, Rack (4) |
|
- | |||||
| 7 | 98004052 | Bumper, Door (2) |
|
- | |||||
| 8 | 98008169 | Screw (biscuit) |
|
- | |||||
| 8 | 3196166 | Screw, White (Replaces: 98006727) |
|
$ 6.31 | |||||
| 9 | 98004698 | Liner, Door |
|
- | |||||
| 11 | 98015234 | Insulation, Door |
|
- | |||||
| 12 | 98009341 | Panel, Door (biscuit) |
|
- | |||||
| 12 | 98009342 | Panel, Door (white) |
|
- | |||||
| 13 | WP3405184 | Handle, Brlr Door (white) (Replaces: 98008486) |
|
$ 68.41 | |||||
| 13 | WP3405189 | Handle, Brlr Door (biscuit) (Replaces: 98008488) |
|
$ 78.05 | |||||
| 15 | W11499074 | Hanger, Brlr Door (Replaces: 98003790) |
|
- | |||||
| 16 | 98008341 | Cover, Guide |
|
- | |||||
| 17 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 18 | 98003791 | Support, Hinge |
|
- | |||||
| 19 | 98008380 | Spring, Broiler (right Hand) |
|
- | |||||
| 19 | 98008379 | Spring, Broiler (left Hand) |
|
- | |||||
| 20 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 21 | 98007396 | Spacer, Hinge |
|
- | |||||
| 22 | 98004053 | Pin, Hinge (2) |
|
- |
