SELECT A DIAGRAM

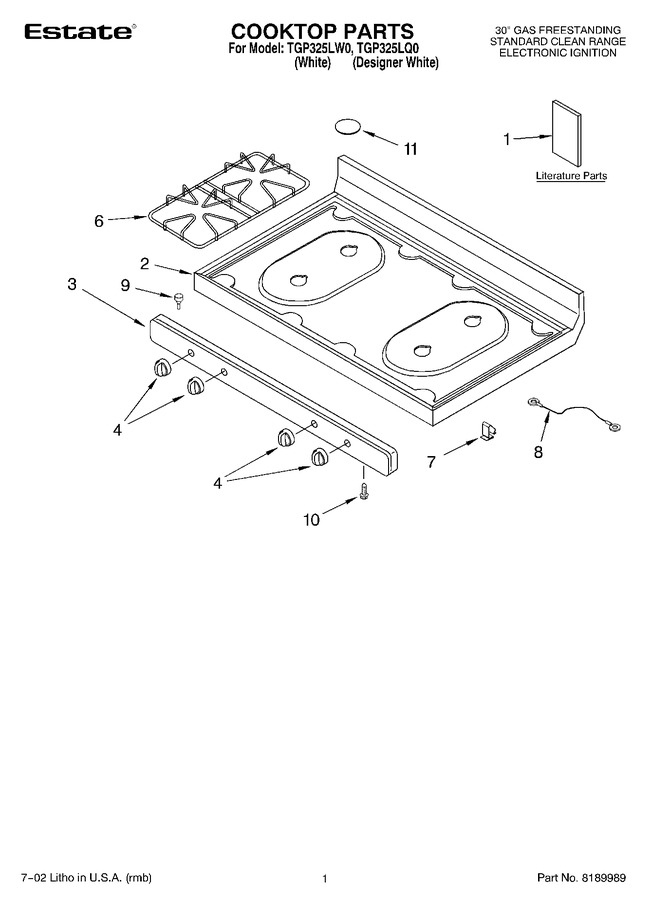

01 - Cooktop


02 - Backguard


03 - Mainfold


04 - Chassis


05 - Oven & Broiler


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT98007121		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT98012565		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT98007130		Literature Parts (safer Cooking Tips)		Appelez-nous	-
1	LIT98007031		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT98007137		Literature Parts (instructions Installation)		Appelez-nous	-
2	98009677		Cooktop (white/des. White)		Appelez-nous	-
3	98012602		Panel, Manifold (black)		Appelez-nous	-
3	98012604		Panel, Manifold (white)		Appelez-nous	-
4	WP98006100		Knob, Burner (4) (black)   (Replaces: 98006100)				$ 18.09
4	WP98006102		Knob, Burner (4) (white)   (Replaces: 98006102)				$ 17.53
6	8190014		Grate, Burner (2) (gray)   (Replaces: 98009283)		Appelez-nous	-
6	8190014		Grate, Burner (2) (black)   (Replaces: 98009281)		Appelez-nous	-
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98007209)				$ 74.50
9	98004723		Bumper, Cooktop		Appelez-nous	-
10	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98005518		Cap, Burner (gray)   (Replaces: 98007065)				$ 59.21
11	WP98005518		Cap, Burner (black)   (Replaces: 98005518)				$ 59.21

    View Diagram in Separate Window       Print Part List
