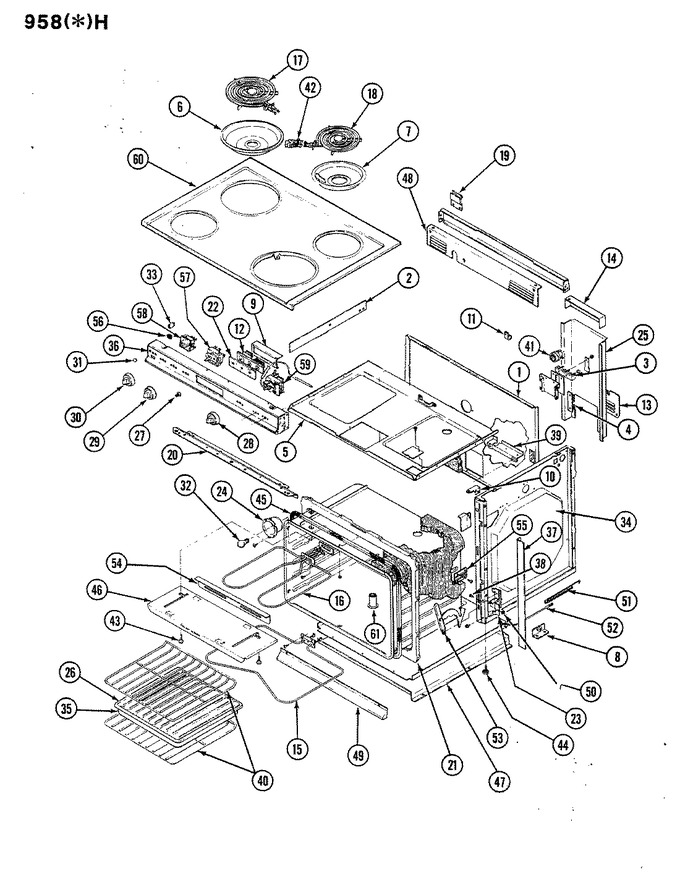

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1430276 | Kit, Backguard | 1 |
|
- | ||||
| 1 | 4002F092-20 | Back, Main | 1 |
|
- | ||||
| 2 | 3601F106-51 | Baffle, Side Panel | 1 |
|
- | ||||
| 3 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 4 | 7401P003-60 | Block, Terminal----na | 1 |
|
- | ||||
| 5 | 4011F082-23 | Box, Burner | 1 |
|
- | ||||
| 6 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 20 |
|
Immediately | $ 15.56 | |||
| 6 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P001-60) | 1-19 |
|
Immediately | $ 15.56 | |||
| 7 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P002-60) | 1-19 |
|
Immediately | $ 12.05 | |||
| 7 | 3802F071-80 | Brace, Main Top | 1 |
|
- | ||||
| 7 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 20 |
|
Immediately | $ 12.05 | |||
| 8 | 3801F017-34 | Bracket, Cable Roller | 1 |
|
- | ||||
| 9 | 3801F113-51 | Bracket, Clock Mtg | 1 |
|
- | ||||
| 10 | 3818F021 | Channel, Wire Rear | 1 |
|
- | ||||
| 10 | 3818F022-51 | Channel, Wire Side | 1 |
|
- | ||||
| 10 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 10 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 11 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 11 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 12 | 7601P063-60 | Clock | 1 |
|
- | ||||
| 13 | 4005F013-80 | Shield | 1 |
|
- | ||||
| 14 | 4005F082-80 | Cover, Housing | 1 |
|
- | ||||
| 15 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 16 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 17 | WP3191454 | Element (8``) (Replaces: 7406P015-60) | 1 |
|
$ 163.63 | ||||
| 18 | WP660532 | Element (6``) (Replaces: 7406P018-60) | 1 |
|
Immediately | $ 36.90 | |||
| 18 | 7706P065-60 | Extrusion, Trim | 1 |
|
- | ||||
| 18 | 7706P077-60 | Extrusion, Trim | 1 |
|
- | ||||
| 18 | 7706P021-60 | Extrusion, Trim | 1 |
|
- | ||||
| 19 | 7706P170-60 | Hinge, Main Top | 1 |
|
- | ||||
| 19 | 1430241 | Ks-60 Filler Strip | 1 |
|
- | ||||
| 20 | 4012F013-80 | Front, Burner Box | 1 |
|
- | ||||
| 21 | 2201F032-23 | Front, Frame Oven | 1 |
|
- | ||||
| 22 | 7902P027-60 | Glass, Clock | 1 |
|
- | ||||
| 23 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 23 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 24 | 4001F016-11 | Housing | 1 |
|
- | ||||
| 25 | 4001F034-20 | Housing, Main Wire | 1 |
|
- | ||||
| 26 | 4396923 | Insert (Replaces: 3413F002-11) | 1 |
|
Immediately | $ 52.04 | |||
| 27 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 28 | 7711P265-60 | Knob | 1-17 |
|
- | ||||
| 28 | 7735P016-60 | Knob, Thermostat | 18 |
|
- | ||||
| 29 | 7711P266-60 | Knob, Switch | 1-17 |
|
- | ||||
| 29 | 7739P017-60 | Knob, Selector | 18 |
|
- | ||||
| 30 | 7737P015-60 | Knob, Surface Switch | 18 |
|
- | ||||
| 30 | 7711P268-60 | Knob | 1-17 |
|
- | ||||
| 31 | 7730P001-60 | Lens, Signal Lamp | 1 |
|
- | ||||
| 32 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 33 | 7407P017-60 | Lamp, Signal | 1 |
|
- | ||||
| 34 | 4009W030-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 35 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 1 |
|
Immediately | $ 52.04 | |||
| 36 | 7722A076-60 | Panel, Upper Front Trim | 1 |
|
- | ||||
| 37 | 2618F029-20 | Panel, Angle Side | 1 |
|
- | ||||
| 37 | 2618F027-20 | Panel, Angle Side | 1 |
|
- | ||||
| 38 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 39 | 3605F148-80 | Plate, Conduit | 19 |
|
- | ||||
| 39 | 3605F146-51 | Plate, Conduit Reinforcement | 19 |
|
$ 6.06 | ||||
| 39 | 7719P021-60 | Plate, Name | 1 |
|
- | ||||
| 39 | 3605F031-80 | Plate, Conduit | 1 |
|
- | ||||
| 40 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 41 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 42 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 1 |
|
Immediately | $ 14.48 | |||
| 43 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 19 |
|
Immediately | $ 6.85 | |||
| 43 | 7101P014-60 | Screw, Cabinet Mtg | 1 |
|
- | ||||
| 43 | 7101P005-60 | Screw | 1 |
|
- | ||||
| 44 | WP74004005 | Screw (Replaces: 1986326) | 1 |
|
$ 6.95 | ||||
| 44 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 45 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 46 | 3604F092-45 | Shield, Broil | 1 |
|
- | ||||
| 47 | 3604F003-80 | Shield, Bottom | 1 |
|
- | ||||
| 48 | 3604F056-20 | Shield, Housing | 1 |
|
- | ||||
| 49 | 3604F066-51 | Shield | 1 |
|
- | ||||
| 49 | 3604W062-23 | Shield | 1 |
|
- | ||||
| 50 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 51 | 7803P024-60 | Spring, Oven Door | 1 |
|
- | ||||
| 52 | WPW10339879 | Strap, Tube (Replaces: 8019P003-60) | 1 |
|
$ 7.11 | ||||
| 52 | 8019P001-60 | Strap Cable | 1 |
|
- | ||||
| 53 | 3420A034-34 | Stop Assy., Hinge | 1 |
|
- | ||||
| 54 | 3807F176-13 | Support | 1 |
|
- | ||||
| 55 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 56 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 57 | 7403P032-60 | Switch, Selector | 1 |
|
- | ||||
| 58 | W11122006 | Switch, Inf. Control (Replaces: 7403P168-60) | 1 |
|
$ 145.12 | ||||
| 59 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 60 | 2002W049-94 | Top Assy, Main Alm | 1 |
|
- | ||||
| 60 | 7706P042-60 | Trim, Cabinet Front | 1 |
|
- | ||||
| 61 | 8026P001-60 | Tube | 1 |
|
- |
