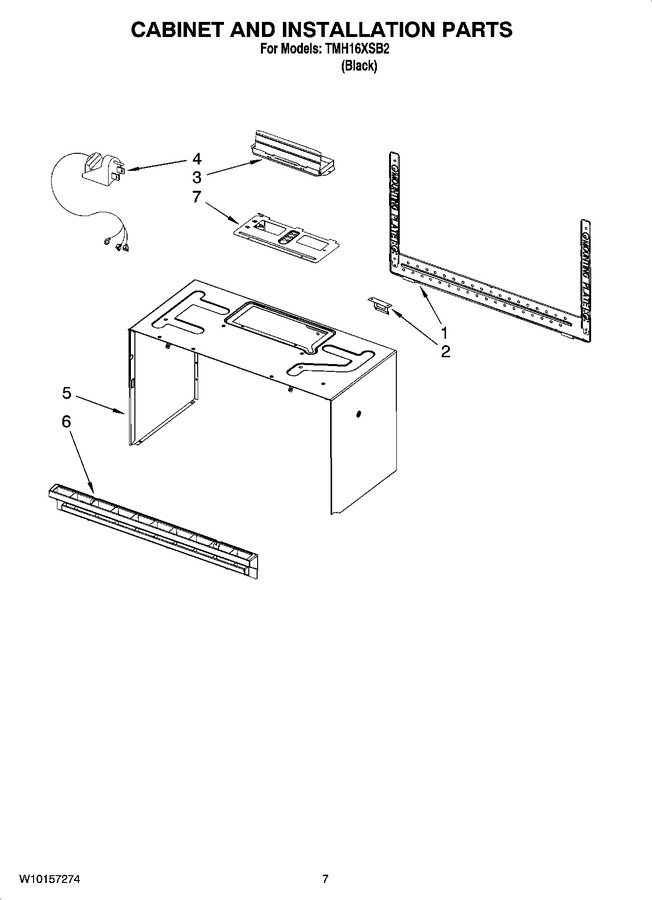

06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: 8206315) |
|
$ 69.20 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | 8206388 | Cord, Power |
|
$ 78.08 | |||||
| 5 | 8206338 | Case, Outer (black) |
|
- | |||||
| 6 | W10111340 | Grille, Vent (black) |
|
- | |||||
| 7 | W10157207 | Plate, Damper |
|
- | |||||
| W10107770 | Harness Wire, Ntc |
|
- | ||||||
| W10138802 | Screw, Top Mountng |
|
$ 9.80 | ||||||
| 8205871 | Template, Upper |
|
$ 24.66 | ||||||
| W10107710 | Main Harness |
|
- | ||||||
| 8205635 | Ground Wire Assy. |
|
- | ||||||
| 8206415 | H.v. Wire Assy |
|
$ 39.87 | ||||||
| W10107760 | Grnd Wire, Filter |
|
- | ||||||
| W10138804 | Hdlmp/tt Wire Assy |
|
- | ||||||
| W10107740 | Hv Trnsfmr Wr Assy |
|
- | ||||||
| W10821385 | Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 |
