Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8206340 Deflector, Air Special Order $ 146.24

2 8206382 Cover, Lamp Special Order $ 7.87

3 8206232A Lamp   (Replaces: 4393681) In-Stock Immediately $ 6.61

4 8206371 Cover, Side Inlet Appelez-nous -
5 W10114550 Motor, Fan Assy Appelez-nous -
6 W10107800 Shield Appelez-nous -
7 W10138797 Air Guide Special Order $ 81.60

8 8206230A Filter, Charcoal   (Replaces: 8206230) In-Stock Immediately $ 17.33

9 W10110862 Mounting, Nut (2) Appelez-nous -
10 8206625 Channel, Air Appelez-nous -
11 W10138800 Air Guide Appelez-nous -
12 8206624 Filter Special Order $ 38.80

13 8169539 Holder, Lamp Special Order $ 54.43

14 W10138799 Base Plate, Air Guide Appelez-nous -
15 8206368 Brkt-mntg, Filter Appelez-nous -
16 W10117846 Socket, Motor Wire Appelez-nous -
17 W10110598 Cover, Terminal Appelez-nous -
18 W10754299 Magnetron   (Replaces: 8206341) In-Stock Immediately $ 208.09

19 W10598693 Thermostat   (Replaces: 8206342) Special Order $ 55.94


    View Diagram in Separate Window     Print Icon   Print Part List

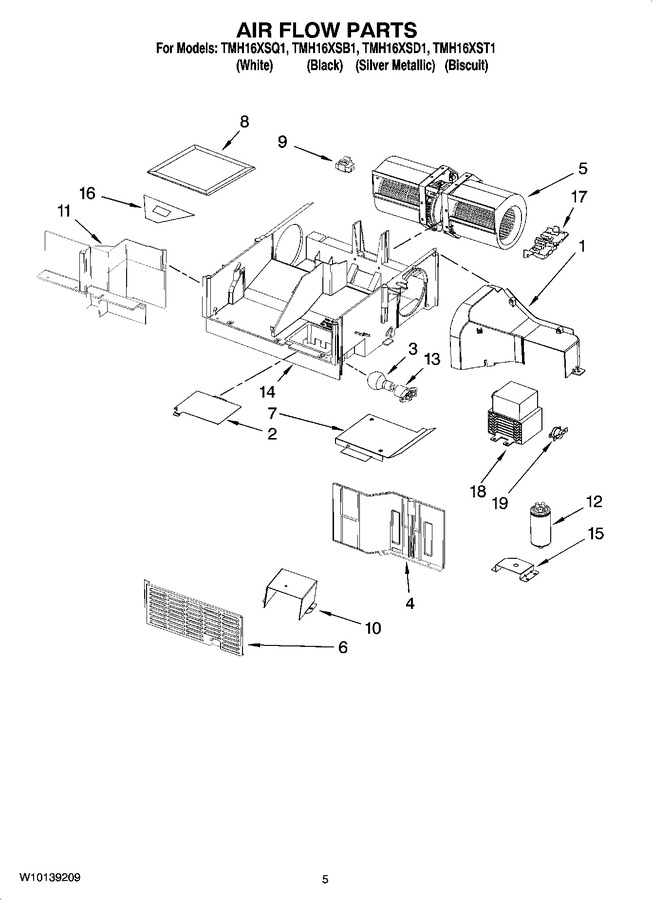

Diagram for TMH16XSQ1
