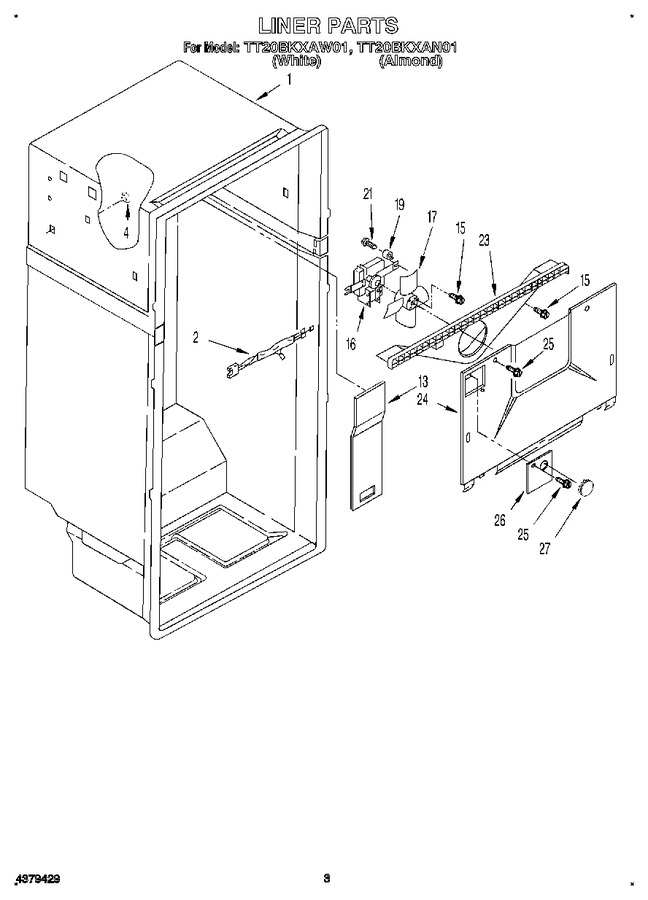

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
4	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 6.89
13	2157411		Cover, Air Duct		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	482731		Motor, Fan   (Replaces: 2169116)			Immediately	$ 71.15
17	WP1100938		Blade, Fan   (Replaces: 2162448)				$ 79.08
19	531933		Grommet (2)				$ 5.70
21	489168		Screw		Appelez-nous	-
23	2160644		Scroll, Fan		Appelez-nous	-
24	2157428		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.01
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1120124)				$ 40.47
27	1103725		Hole Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
