SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit

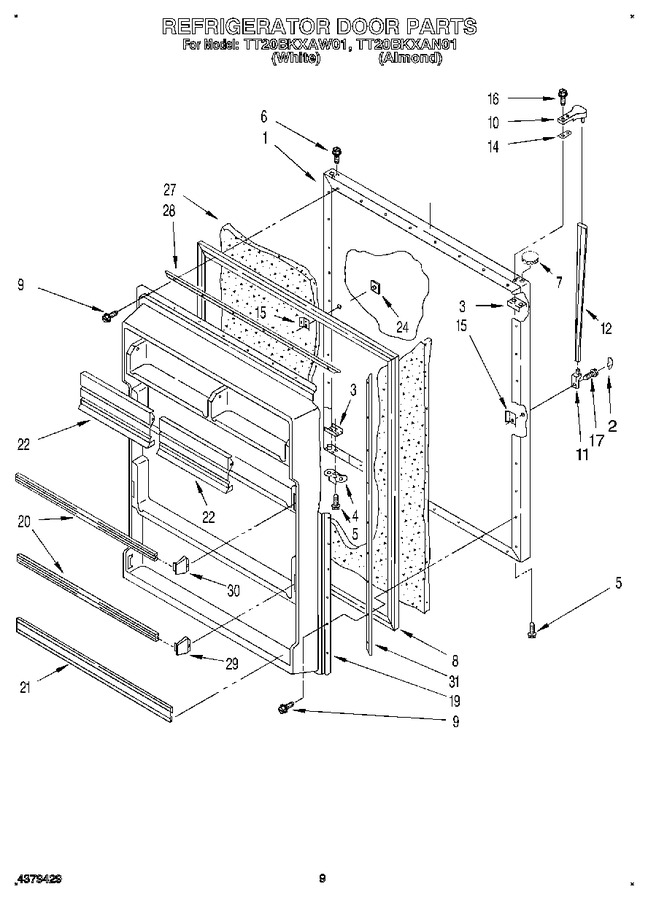

07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1122549		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	1122658		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
2	WP1101634		Screw Cover   (Replaces: 981182)				$ 8.30
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
8	2188450A		Door Gasket, Magnetic   (Replaces: 1122828)				$ 243.50
9	WP489069		Screw (7 X 1/2 (20))   (Replaces: 489101)			Immediately	$ 7.07
9	WP488729		Screw ((8))   (Replaces: 489287)			Immediately	$ 7.01
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
10	2148503		End Cap, Top		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 44.55
12	1106189		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 6.75
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
19	2156205		Interior Door Panel		Appelez-nous	-
20	1120825		Trim, Door (2)		Appelez-nous	-
21	1120826		Trim, Door				$ 65.71
22	2163278		Compartment Door (2)		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.66
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	1122552		Gasket, Retainer		Appelez-nous	-
29	4318297		Endcap, Trim (2)   (Replaces: 1106861)				$ 20.94
30	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 16.20
31	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
31	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
31	2172761		Door Reversal Instructions		Appelez-nous	-
31	350942		Primer White (13 Oz. Spray Can)				$ 80.69
31	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
31	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
31	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	833938		Kit, Terminal Connector				$ 7.26
31	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
31	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
31	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
31	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
31	1122551		Gasket, Retainer		Appelez-nous	-
31	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
31	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
31	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 208.40
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	LIT2163262		Use & Care Guide		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2163507		Energy Guide		Appelez-nous	-
