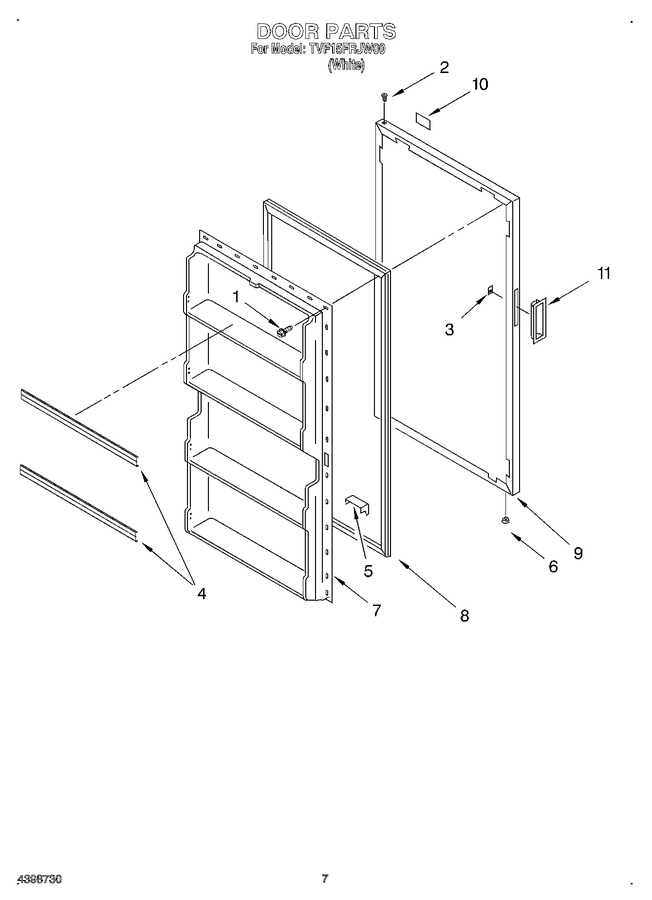

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 18.89
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356306		Clip, Handle				$ 7.36
4	4390608		Door Shelf Trim (4)				$ 45.37
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	4390651		Interior Door		Appelez-nous	-
8	WP4357099		Door Gasket   (Replaces: 4357099)				$ 290.47
9	4390640		Exterior Door		Appelez-nous	-
10	4356705		Nameplate		Appelez-nous	-
11	4390641		Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
