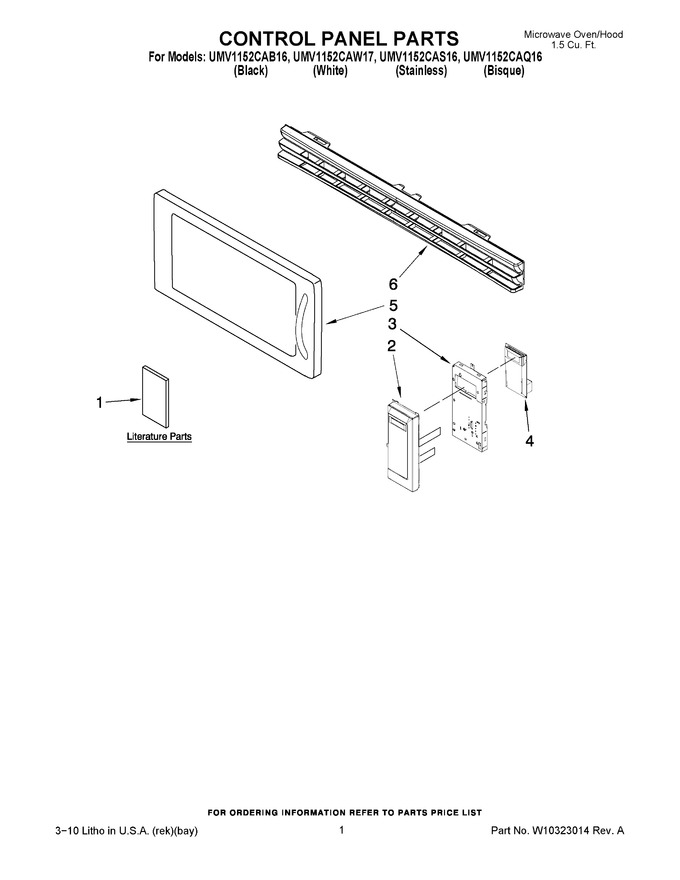

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177918 | U & C Guide |
|
- | |||||
| 1 | W10182258 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01354A | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
- | |||||
| 2 | DE94-01354B | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 2 | DE94-01354D | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
- | |||||
| 2 | DE94-01354C | Panel Asy, Control Membrane, Lens And Bracket (bisque) |
|
- | |||||
| 3 | DE97-00600B | Bracket, Control |
|
- | |||||
| 4 | W10182256 | Microcomputer |
|
- | |||||
| 5 | DE94-01352A | Complete Door (black) |
|
- | |||||
| 5 | DE94-01352D | Complete Door (stainless) |
|
$ 199.10 | |||||
| 5 | DE94-01352C | Complete Door (bisque) |
|
- | |||||
| 5 | DE94-01352B | Complete Door (white) |
|
- | |||||
| 6 | DE64-01453B | Grille Assembly (white) |
|
$ 112.44 | |||||
| 6 | DE64-01453A | Grille Assembly (stainless) |
|
$ 106.51 | |||||
| 6 | DE64-01453C | Grille Assembly (bisque) |
|
- |
