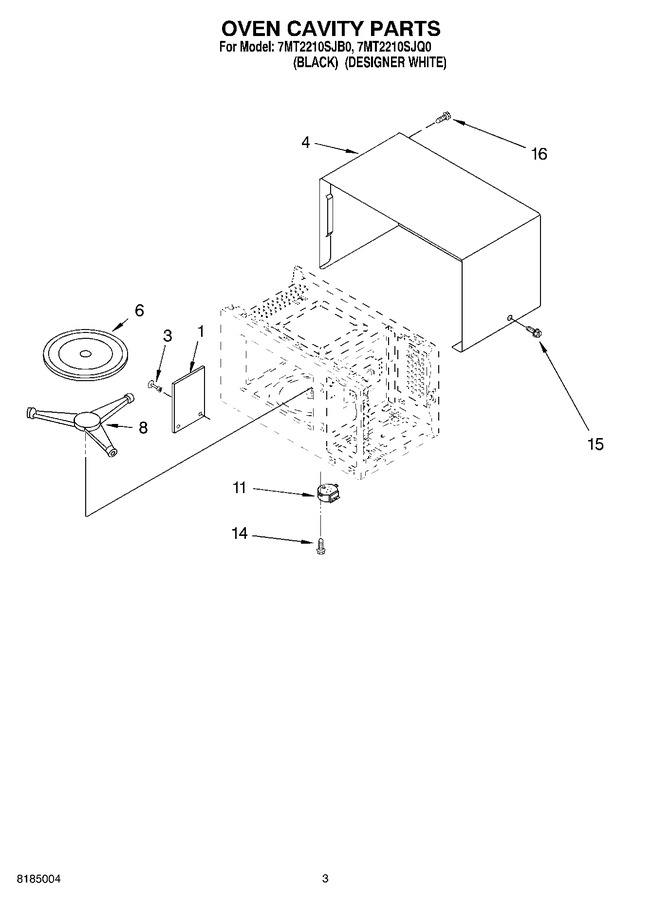

03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171983 | Canopy |
|
- | |||||
| 3 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 4 | 4359881 | Outer Case (white) |
|
- | |||||
| 4 | 8171897 | Outer Case (black) |
|
- | |||||
| 6 | 8172017 | Tray, Glass |
|
- | |||||
| 8 | 4359884 | Turntable Support |
|
- | |||||
| 11 | WPW10159107 | Motor, Synchronous (Replaces: 8183504) |
|
$ 160.07 | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | W11245710 | Screw (white) (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 15 | 4358829 | Screw (black) |
|
- | |||||
| 16 | 4358192 | Screw |
|
- |
