SELECT A DIAGRAM

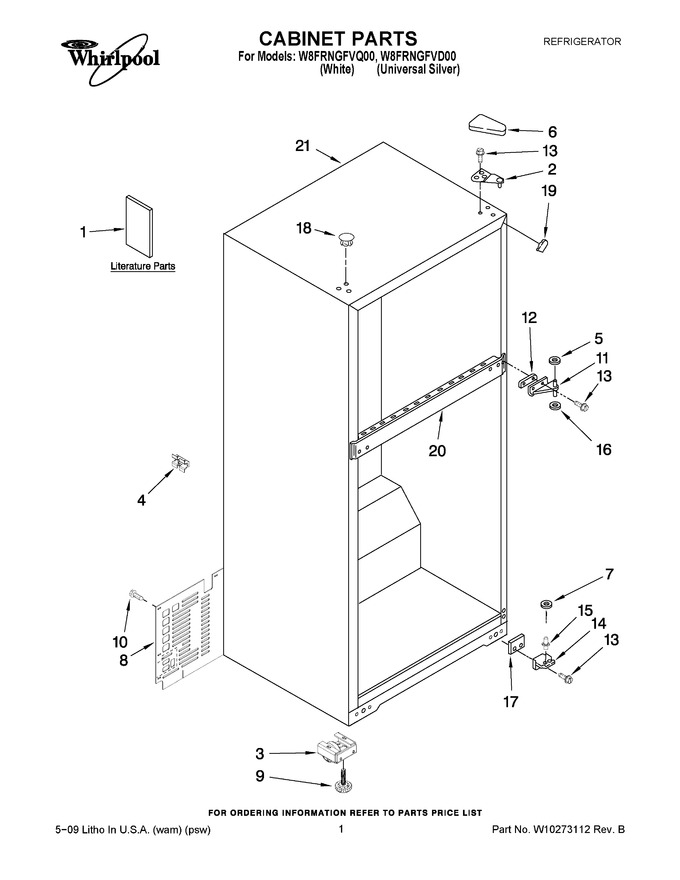

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10217606		Energy Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	W10217605		Service & Wiring Sheet		Appelez-nous	-
1	W10217604		Use & Care Guide		Appelez-nous	-
2	2321179		Hinge Butt, Top		Appelez-nous	-
3	WPW10142530		Roller, Front   (Replaces: W10142530)			Immediately	$ 101.23
4	2266506		Spacer-back Cb				$ 12.33
5	WP489467		Washer   (Replaces: 489341)			Immediately	$ 9.79
6	2213360D		Cover, Hinge (universal Silver)		Appelez-nous	-
6	WP2213360		Cover-hinge (white)   (Replaces: 2213360)				$ 17.31
7	WP487576		Washer   (Replaces: 487576)			Immediately	$ 8.89
8	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 97.52
9	WPW10133299		Screw, Leveler   (Replaces: W10133299)				$ 10.58
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
11	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 70.34
12	2166043		Shim, Hinge Center				$ 59.80
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
14	WP2325482		Hinge Butt Bottom   (Replaces: 2325482)			Immediately	$ 68.57
15	WP2325483		Hinge-pin, Bottom   (Replaces: 2325483)			Immediately	$ 6.47
16	WP487576		Washer   (Replaces: 487576)			Immediately	$ 8.89
17	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)				$ 6.99
18	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 19.60
18	2326060		Hole Plug (6) (universal Silver)				$ 56.81
19	2166003D		Corner Filler (universal Silver)		Appelez-nous	-
19	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 6.93

    View Diagram in Separate Window       Print Part List
