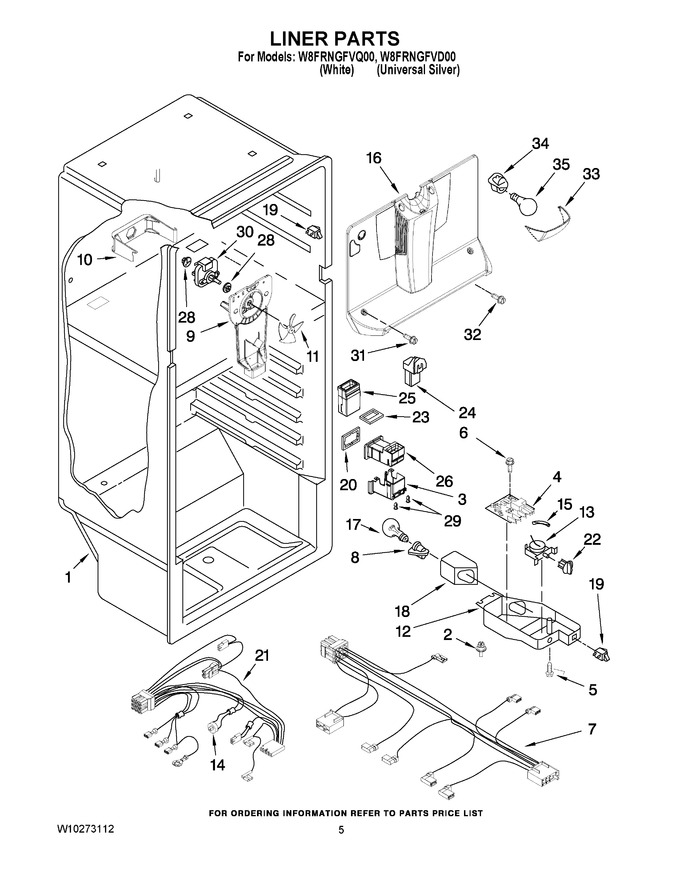

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 939962 | Rivet |
|
$ 10.65 | |||||
| 3 | 2252837 | Cover, Air Diffuser |
|
$ 189.10 | |||||
| 4 | 4388931 | Adaptive Defrost Control (Replaces: 2303825) |
|
Immediately | $ 219.58 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 6 | WP487353 | Screw (Replaces: 488693) |
|
$ 6.81 | |||||
| 7 | 2265603 | Wire Assembly Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | 2263273 | Fan Support Bracket |
|
- | |||||
| 10 | 2263290 | Retainer, Fan Motor |
|
- | |||||
| 11 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 12 | 2264733 | Control Box |
|
- | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2325701) |
|
Immediately | $ 162.37 | ||||
| 14 | WPW10225581 | Defrost, Bi-metal (Replaces: 2266067) |
|
Immediately | $ 45.69 | ||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 7.16 | |||||
| 16 | 2325518 | Cover, Evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 93.36 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | W10129686 | Gasket, Air Diffuser Body |
|
$ 12.31 | |||||
| 21 | W10244329 | Wiring, Freezer (includes Item 14) |
|
- | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 23.74 | |||||
| 23 | 2263075 | Gasket, Air Duct |
|
$ 85.86 | |||||
| 24 | 2316186 | Hood And Foil Assembly |
|
$ 40.20 | |||||
| 25 | 2252834 | Air Duct Assembly |
|
- | |||||
| 26 | 2252831 | Air Diffuser |
|
$ 91.83 | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2264462) |
|
Immediately | $ 39.57 | ||||
| 29 | 2256983 | Rivet |
|
$ 38.78 | |||||
| 30 | WPW10188389 | Evaporator Fan Motor (Replaces: 2201212) |
|
Immediately | $ 69.15 | ||||
| 31 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 7.17 | ||||
| 32 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 33 | 2263272 | Light Lens |
|
- | |||||
| 34 | W10545295 | Socket, Light (Replaces: 2263413) |
|
- | |||||
| 35 | W10888319 | Light Bulb (Replaces: R-31244) |
|
Immediately | $ 12.97 |
