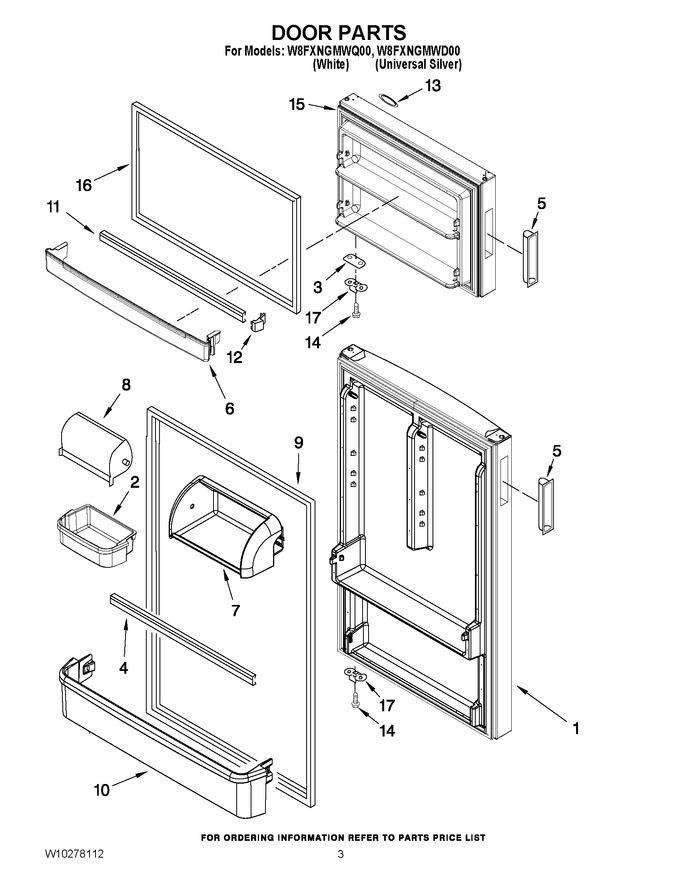

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258311		Refrigerator Door (includes Illus. 9) (universal Silver)		Appelez-nous	-
1	W10258306		Refrigerator Door (includes Illus. 9) (white)		Appelez-nous	-
2	2328524		Bin, Door (3)				$ 31.63
3	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 6.47
4	WPW10234241		Trim, Door Shelf   (Replaces: W10234241)			Immediately	$ 104.87
5	W11395913		Handle (apollo Grey)   (Replaces: W10240002)				$ 44.16
5	W10352523		Handle (white)				$ 21.60
6	2328522		Trim, Fc Door		Appelez-nous	-
7	2264477		Housing, Compartment				$ 83.18
8	2328521		Door, Compartment		Appelez-nous	-
9	WP2319264W		Door Gasket, Magnetic (white)   (Replaces: 2264727)			Immediately	$ 282.07
9	W11578847		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10246160)			Immediately	$ 215.42
10	WPW10468559		Trim, Door Shelf (botton)   (Replaces: 2328523)				$ 93.74
11	2324266		Trim, Door Shelf		Appelez-nous	-
12	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
13	W10375373		Nameplate		Appelez-nous	-
14	W10276642		Screw   (Replaces: 8533904)				$ 5.49
15	W10258417		Freezer Door (includes Illus. 16) (universal Silver)		Appelez-nous	-
15	W10258307		Freezer Door (includes Illus. 16) (white)		Appelez-nous	-
16	WP2319263W		Door Gasket, Magnetic (white)   (Replaces: 2264726)			Immediately	$ 135.93
16	W11661186		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10244875)			Immediately	$ 197.19
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
