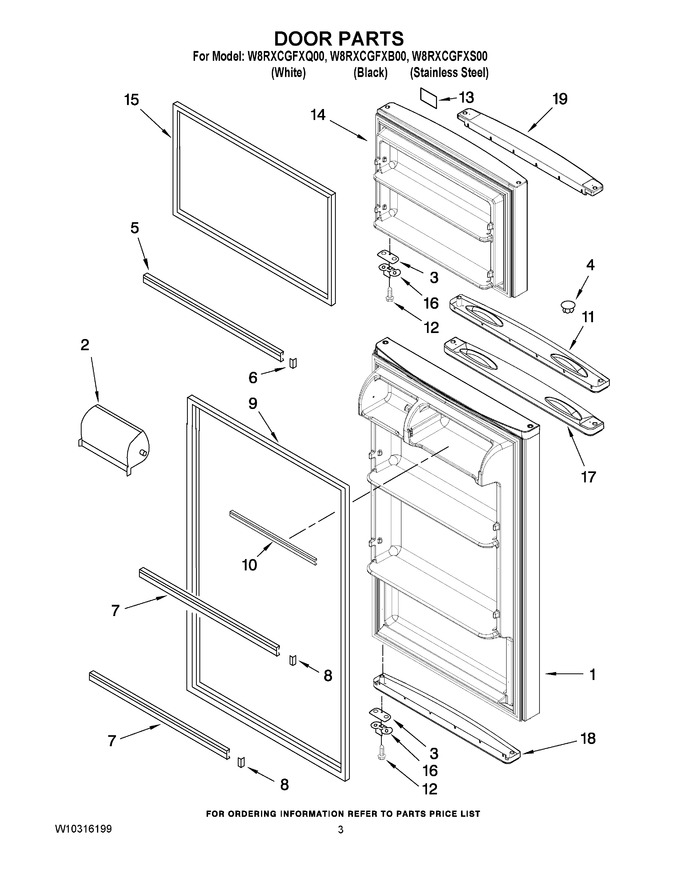

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10267772 | Refrigerator Door (includes Illus. 9) (black) |
|
- | |||||
| 1 | W10267761 | Refrigerator Door (includes Illus. 9) (stainless) |
|
- | |||||
| 1 | W10267739 | Refrigerator Door (includes Illus. 9) (white) |
|
- | |||||
| 2 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 4 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.02 | ||||
| 4 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 5 | WP2266727 | Trim, Door Shelf (narrow) (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 6 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 7 | WP2266738 | Trim, Door Shelf (wide) (Replaces: 2266738) |
|
$ 100.52 | |||||
| 8 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 277.59 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (white) (Replaces: W10190032) |
|
Immediately | $ 173.44 | ||||
| 10 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 11 | W10267712 | Plug, Trim (white) |
|
$ 30.78 | |||||
| 11 | W10267747 | Plug, Trim (black) |
|
- | |||||
| 12 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 79.87 | ||||
| 14 | LW10267762 | Freezer Door (includes Illus. 15) (stainless) (Replaces: W10267762) |
|
$ 532.81 | |||||
| 14 | W10267773 | Freezer Door (includes Illus. 15) (black) |
|
- | |||||
| 14 | W10267735 | Freezer Door (includes Illus. 15) (white) |
|
- | |||||
| 15 | WP2319263T | Door Gasket, Magnetic (white) (Replaces: W10190031) |
|
Immediately | $ 152.58 | ||||
| 15 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 17 | 2265645W | Endcap, Handle (white) |
|
$ 188.55 | |||||
| 17 | 2222045 | Endcap, Handle (black) |
|
$ 41.70 | |||||
| 18 | W10267749 | Endcap, Bottom (black) |
|
$ 36.32 | |||||
| 18 | W10267713 | Endcap, Bottom (white) |
|
$ 34.53 | |||||
| 19 | 2252863 | Endcap, Top (black) |
|
Immediately | $ 133.31 | ||||
| 19 | 2265644W | Endcap, Top (white) |
|
$ 148.05 |
