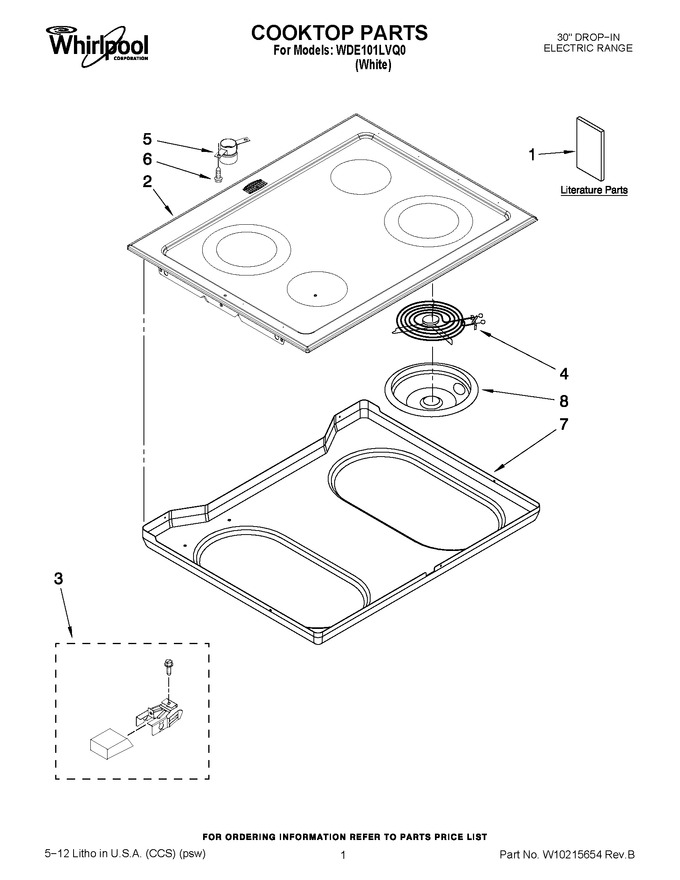

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175572 | Use & Care Guide |
|
- | |||||
| 1 | W10165721 | Installation Instructions |
|
- | |||||
| 2 | 2002M200-81 | Cooktop (white) (Replaces: 2002W200-81) |
|
- | |||||
| 3 | 12001676 | Kit, Hardware |
|
Immediately | $ 28.45 | ||||
| 4 | WP9761346 | Element (rf,lr) (large) (Replaces: W10209374) |
|
Immediately | $ 94.16 | ||||
| 4 | WPW10345407 | Element (rf,lr) (small) (Replaces: W10209373) |
|
Immediately | $ 141.79 | ||||
| 5 | 74005759 | Tube, Vent Upper |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 7 | 74006046 | Bottom, Burner Box |
|
- | |||||
| 8 | WPW10196406 | Bowl, Drip (small) (Replaces: 74001212) |
|
Immediately | $ 12.05 | ||||
| 8 | WPW10196405 | Bowl, Drip (large) (Replaces: 74001213) |
|
Immediately | $ 15.56 |
