01 - Cooktop Parts
02 - Control Panel Parts

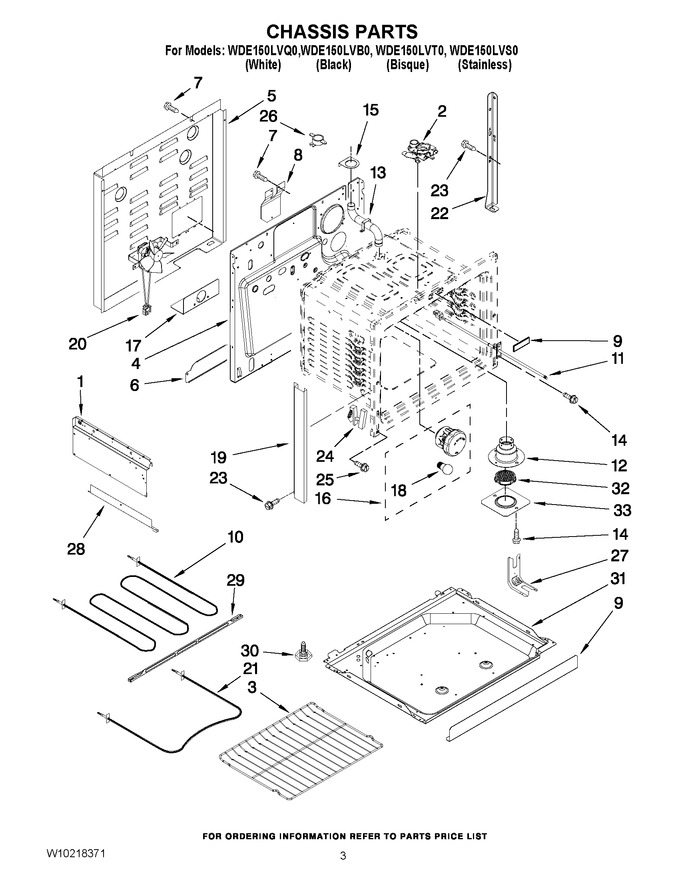

03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010822 | Panel, Shield (right) |
|
- | |||||
| 1 | 74010821 | Panel, Shield (left) |
|
- | |||||
| 2 | 74010897 | Latch Assembly |
|
- | |||||
| 3 | 74011813 | Rack, Oven |
|
- | |||||
| 4 | W10166282 | Main Back |
|
- | |||||
| 5 | W10203736 | Cover, Main Wire |
|
$ 92.37 | |||||
| 6 | 74010815 | Extension, Back |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: W10116760) |
|
Immediately | $ 7.04 | ||||
| 8 | 74006364 | Insulator, Cord |
|
- | |||||
| 9 | 3604W156-78 | Shield, Vent (bisque) |
|
- | |||||
| 9 | 74001338 | Shield, Vent (white) |
|
- | |||||
| 9 | 74001337 | Shield, Vent (black) |
|
- | |||||
| 10 | WP7406P218-60 | Element, Broil (Replaces: 74003040) |
|
Immediately | $ 152.28 | ||||
| 11 | 12001656 | Sensor, Oven (Replaces: 74004943) |
|
Immediately | $ 39.55 | ||||
| 12 | W10165722 | Tube, Vent Lower |
|
$ 66.44 | |||||
| 13 | 74010886 | Tube, Vent Upper |
|
- | |||||
| 14 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 | |||||
| 15 | 74010817 | Holder, Vent Tube |
|
- | |||||
| 16 | WP7407P182-60 | Light Assembly (Replaces: 74010885) |
|
Immediately | $ 66.10 | ||||
| 17 | W10190166 | Bracket,pwr Supply (Replaces: 74004180) |
|
$ 8.32 | |||||
| 18 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 19 | 74011200 | Trim, Side (r. Side) |
|
- | |||||
| 19 | 74011202 | Trim, Side (l. Side) |
|
- | |||||
| 20 | WPW10586440 | Fan, Cooling (Replaces: 74010823) |
|
$ 286.74 | |||||
| 21 | WPW10310274 | Element, Bake (Replaces: 74010883) |
|
Immediately | $ 108.59 | ||||
| 22 | 74010884 | Support, Oven Rear |
|
- | |||||
| 23 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 | |||||
| 24 | 74011142 | Hinge |
|
Immediately | $ 108.22 | ||||
| 25 | WP4159193 | Screw, Hinge (Replaces: 4159193) |
|
$ 4.29 | |||||
| 26 | WP7450P034-60 | Switch, Hi-limit (Replaces: 74010818) |
|
$ 195.82 | |||||
| 27 | WP3801F656-51 | Bracket,anti-tip (Replaces: 74005564) |
|
Immediately | $ 4.69 | ||||
| 28 | 74010820 | Extention, Shield |
|
- | |||||
| 29 | 74003386 | Support, Element |
|
- | |||||
| 30 | W11665456 | Leg, Leveling (Replaces: 74002373) |
|
Immediately | $ 25.30 | ||||
| 31 | 4003F067-51 | Retainer, Bottom (Replaces: 74011204) |
|
- | |||||
| 32 | 74008597 | Smoke Eliminator |
|
- | |||||
| 33 | W10165724 | Plate, Smoke Elim. |
|
- | |||||
| NI | 7002P456-60 | Insulation, Oven Bottom (Replaces: 74011207) |
|
- | |||||
| NI | W10165725 | Insulation, Back |
|
$ 74.98 | |||||
| NI | 74010987 | Insulation, Wrap |
|
$ 60.00 |
