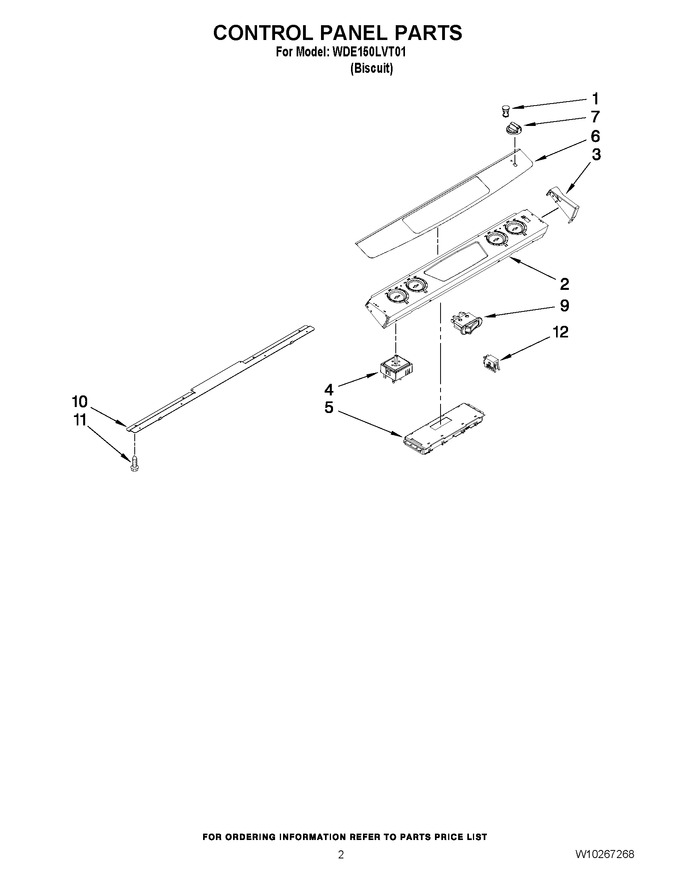

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 2 | W10190182 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 7726P337-60 | Endcap (l.hand) |
|
- | |||||
| 3 | 7726P336-60 | Endcap (r.hand) |
|
$ 33.42 | |||||
| 4 | WP7403P239-60 | Switch, Infinate (8`` (rf,lr)) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| 4 | WP7403P238-60 | Switch, Infinate (6`` (lf,rr)) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 5 | W10769823 | Control (Replaces: 8507P240-60) |
|
Immediately | $ 253.24 | ||||
| 6 | W10178995 | Overlay |
|
- | |||||
| 7 | 7737P416-60 | Knob |
|
$ 72.50 | |||||
| 9 | 74008765 | Switch, Rocker (Replaces: 7403P800-60) |
|
$ 79.50 | |||||
| 10 | 3807F601-51 | Support, Control Panel |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 12 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 |
