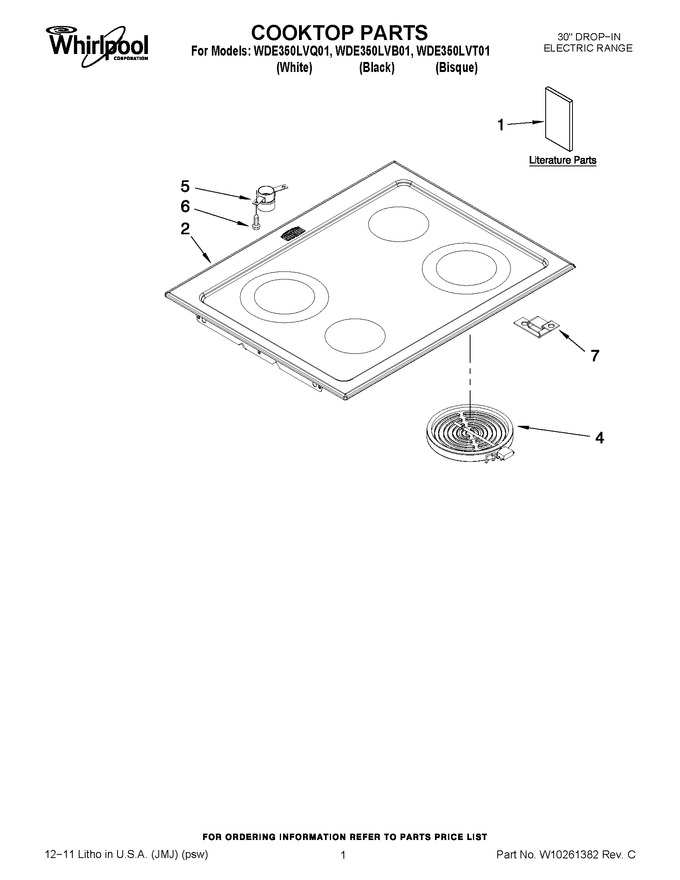

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P336-60 | Installation Instructions |
|
- | |||||
| 1 | W10175572 | Use & Care Guide |
|
- | |||||
| 2 | W10170211 | Cooktop (bisque) |
|
- | |||||
| 2 | W10170210 | Cooktop (black) |
|
$ 823.20 | |||||
| 2 | W10170209 | Cooktop (white) |
|
$ 845.07 | |||||
| 4 | WPW10345407 | Ribbon Elements (small (2)) (Replaces: 7406P475-60) |
|
Immediately | $ 141.79 | ||||
| 4 | W10823711 | Ribbon Elements (1200w Small) (Replaces: 7406P365-60) |
|
Immediately | $ 183.95 | ||||
| 4 | WP9761346 | Ribbon Elements (large (2)) (Replaces: 7406P476-60) |
|
Immediately | $ 94.16 | ||||
| 4 | W10823692 | Ribbon Elements (2400w Dual, Large) (Replaces: 7406P403-60) |
|
Immediately | $ 204.83 | ||||
| 5 | 8026P085-60 | Tube, Vent Upper |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 7 | 4011F371-80 | Bottom, Burner Box |
|
- |
