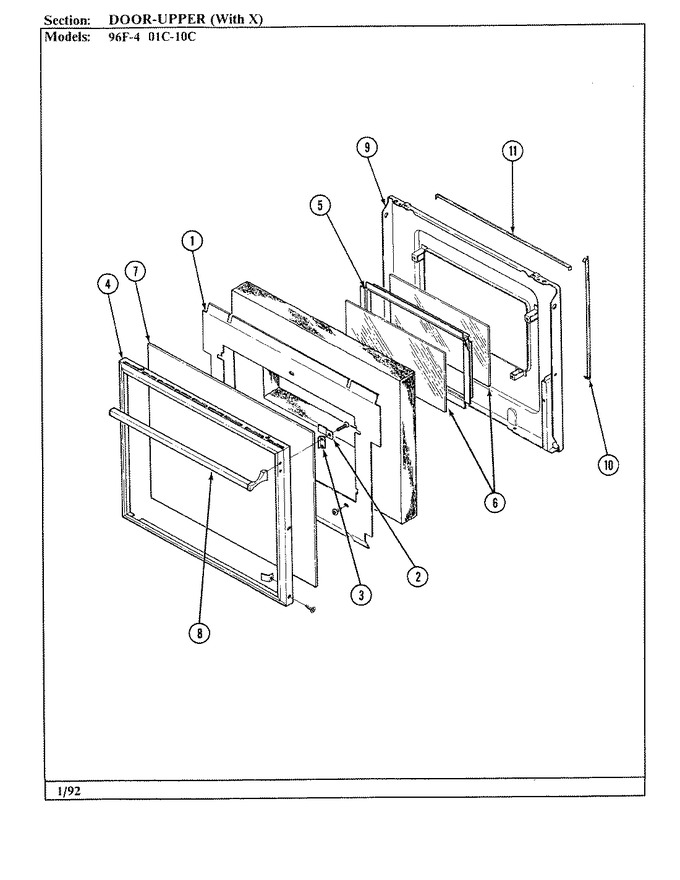

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door | 01 |
|
- | ||||
| 2 | 3804F010-50 | Retainer | 01 |
|
- | ||||
| 3 | 7112P017-60 | Clip, Door Handle | 01 |
|
- | ||||
| 4 | 7706P220-60 | Frame, Door Upper | 01 |
|
- | ||||
| 5 | 3603F013-70 | Frame, Window | 01 |
|
- | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 7 | 7902P264-60 | Glass, Door | 01 |
|
- | ||||
| 8 | 7701P017-60 | Handle, Door | 01 |
|
- | ||||
| 9 | 2402W132-19 | Lining, Door | 07 |
|
- | ||||
| 9 | 2402W132-15 | Lining Assembly | 01 |
|
- | ||||
| 10 | 7212P003-60 | Seal, Oven Door | 01 |
|
$ 46.94 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 |
