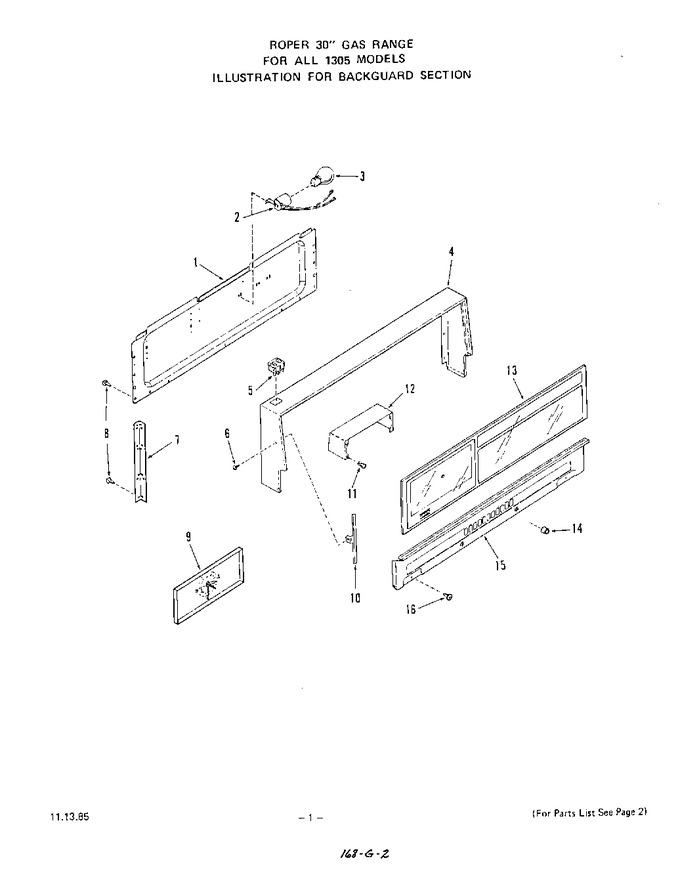

01 - Backguard
02 - Main Top
03 - Optional Griddle
05 - Section
06 - Body
07 - Oven Door
08 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 323295 | Wire Cover-backguard |
|
- | |||||
| 2 | 328075 | Lamp Holder W/leads |
|
- | |||||
| 3 | DA96-01243C | Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 4 | 328408 | Frame-backguard |
|
- | |||||
| 5 | 307410 | Switch-oven & Top Light |
|
- | |||||
| 6 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 7 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 8 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 9 | 327884 | Clock W/4 Hr. Timer |
|
- | |||||
| 10 | 299705 | End Trim- Top Lamp Glass (lt. Or Rt.) |
|
- | |||||
| 11 | 293577 | Tubular Clip (4 Req.) |
|
- | |||||
| 12 | 293560 | Mounting Bracket-clock |
|
- | |||||
| 13 | 324263 | Top Lamp Glass |
|
- | |||||
| 14 | 294810 | Knob-clock |
|
- | |||||
| 15 | 307717 | Front-backguard Bottom |
|
- | |||||
| 16 | 326974 | Screw 10abx1/2`` |
|
- |
