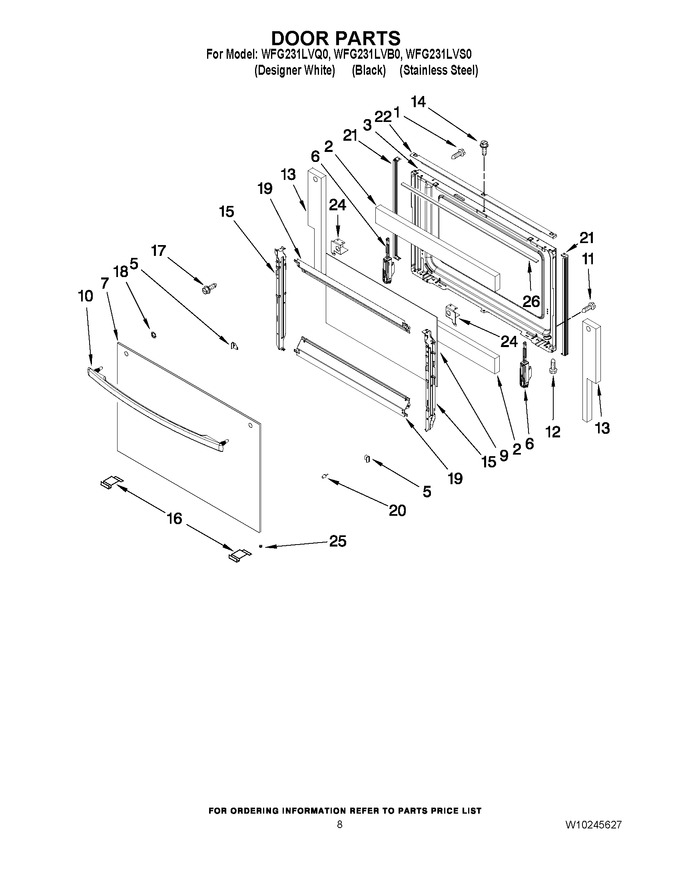

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8533843 | Screw |
|
$ 36.27 | |||||
| 2 | W10111139 | Insulation (2) |
|
$ 118.76 | |||||
| 3 | 98015563 | Liner, Door |
|
$ 84.44 | |||||
| 5 | 98004953 | Clip, Glass (right) |
|
- | |||||
| 5 | 98004952 | Clip, Glass (left) |
|
- | |||||
| 6 | 98017875 | Hinge, Door (2) |
|
$ 31.85 | |||||
| 7 | W10177807 | Panel, Door (stainless) |
|
$ 154.71 | |||||
| 7 | W10177801 | Panel, Door (metalic) |
|
- | |||||
| 7 | W10196876 | Panel, Door (white) |
|
$ 114.38 | |||||
| 9 | WPW10109950 | Glass, Inner (Replaces: W10109950) |
|
$ 196.51 | |||||
| 10 | WP98004942 | Handle, Oven Door (black) (Replaces: 98004942) |
|
Immediately | $ 169.88 | ||||
| 10 | WP98004943 | Handle, Oven Door (white) (Replaces: 98004943) |
|
$ 169.40 | |||||
| 11 | W11206744 | Screw (2) (Replaces: 98008699) |
|
$ 12.20 | |||||
| 12 | WP59002061 | Screw (4) (Replaces: 98004993) |
|
$ 6.98 | |||||
| 13 | W11688816 | Insulation, Side (left) (Replaces: W10110943) |
|
$ 22.15 | |||||
| 13 | W10110944 | Insulation, Side (right) |
|
$ 60.17 | |||||
| 14 | WP98008545 | Screw (3) (black) (Replaces: 98008545) |
|
$ 15.94 | |||||
| 14 | WP98008544 | Screw (3) (white) (Replaces: 98008544) |
|
$ 11.89 | |||||
| 15 | 98004564 | Retainer (right) |
|
- | |||||
| 15 | 98004629 | Retainer (left) |
|
- | |||||
| 16 | 98010185 | Support, Glass (2) (white) |
|
$ 41.41 | |||||
| 16 | WP98010187 | Support, Glass (2) (black) (Replaces: 98010187) |
|
$ 83.31 | |||||
| 17 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 18 | WP98004650 | Nut, Push (2) (Replaces: 98004650) |
|
$ 6.26 | |||||
| 19 | 98015806 | Retainer, Insulatn |
|
- | |||||
| 20 | 98004227 | Bumper (4) |
|
$ 18.94 | |||||
| 21 | WP98006793 | Trim, Side (black) (Replaces: 98006793) |
|
$ 117.04 | |||||
| 21 | 98006794 | Trim, Side (white) |
|
- | |||||
| 22 | W10226478 | Trim, Top (stainless) |
|
- | |||||
| 22 | 98006885 | Trim, Top (white) |
|
- | |||||
| 22 | 98006884 | Trim, Top (black) |
|
- | |||||
| 24 | W10223766 | Support-ss Only (left) |
|
- | |||||
| 24 | W10223765 | Support-ss Only (right) |
|
- | |||||
| 25 | W10153174 | Spacer-ss Only |
|
- | |||||
| 26 | W10221597 | Tape, Foam-ss Only |
|
$ 18.12 |
