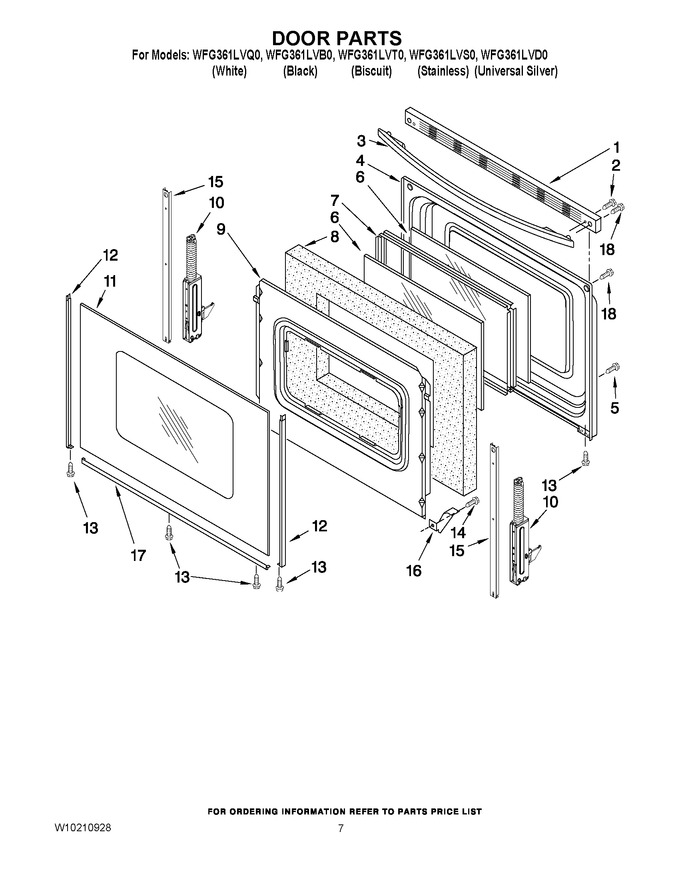

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310923 | Trim, Top (biscuit) (Replaces: W10181675) |
|
$ 169.36 | |||||
| 1 | WPW10310922 | Trim, Top (blk/stls/u.slvr) (Replaces: W10144870) |
|
Immediately | $ 157.83 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10144869) |
|
Immediately | $ 92.94 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 6.97 | ||||
| 3 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 216.57 | |||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10118384) |
|
Immediately | $ 201.28 | ||||
| 3 | WPW10323589 | Handle, Door (black / U.silver) (Replaces: W10118385) |
|
Immediately | $ 214.90 | ||||
| 3 | W10118386 | Handle, Door (biscuit) |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 160.45 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 76.37 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 86.89 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 199.17 | |||||
| 10 | W10347466 | Hinge, Door (wh, Bl, Bis Model) (Replaces: 9761493) |
|
Immediately | $ 188.43 | ||||
| 10 | W10347464 | Hinge, Door (stainless Model) (Replaces: 9761496) |
|
Immediately | $ 114.84 | ||||
| 11 | W10144884 | Glass, Outer Door (stainless Model) |
|
- | |||||
| 11 | W10118456 | Glass, Outer Door (biscuit) |
|
$ 127.08 | |||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: W10118454) |
|
$ 278.50 | |||||
| 11 | WPW10118455 | Glass, Outer Door (black / U.silver) (Replaces: W10118455) |
|
Immediately | $ 285.17 | ||||
| 11 | W10144949 | Glass, Outer Door (universal Silver) |
|
- | |||||
| 12 | 8184858 | Trim, Door Right Hand (stainless) (Replaces: W10113925) |
|
$ 144.73 | |||||
| 12 | W10761018 | Trim, Door Side Left Hand (black / U.silver) (Replaces: 8523171) |
|
Immediately | $ 48.39 | ||||
| 12 | WP8523172 | Trim, Door Side Left Hand (white) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | WP8523173 | Trim, Door Side Left Hand (biscuit) (Replaces: 8523173) |
|
$ 105.89 | |||||
| 12 | 8184858 | Trim, Door Side Left Hand (stainless) (Replaces: W10113926) |
|
$ 144.73 | |||||
| 12 | W10761014 | Trim, Door Right Hand (black / U.silver) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | WP8523166 | Trim, Door (right Hand-white) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | WP8523167 | Trim, Door Right Hand (biscuit) (Replaces: 8523167) |
|
$ 102.09 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
$ 6.47 | |||||
| 15 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 23.72 | ||||
| 16 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 17 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 17 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 52.61 | ||||
| 17 | WP8523178 | Trim, Bottom (biscuit) (Replaces: 8523178) |
|
$ 138.66 | |||||
| 17 | W10067550 | Trim, Bottom (stls / U.silver) |
|
- | |||||
| 18 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.00 |
