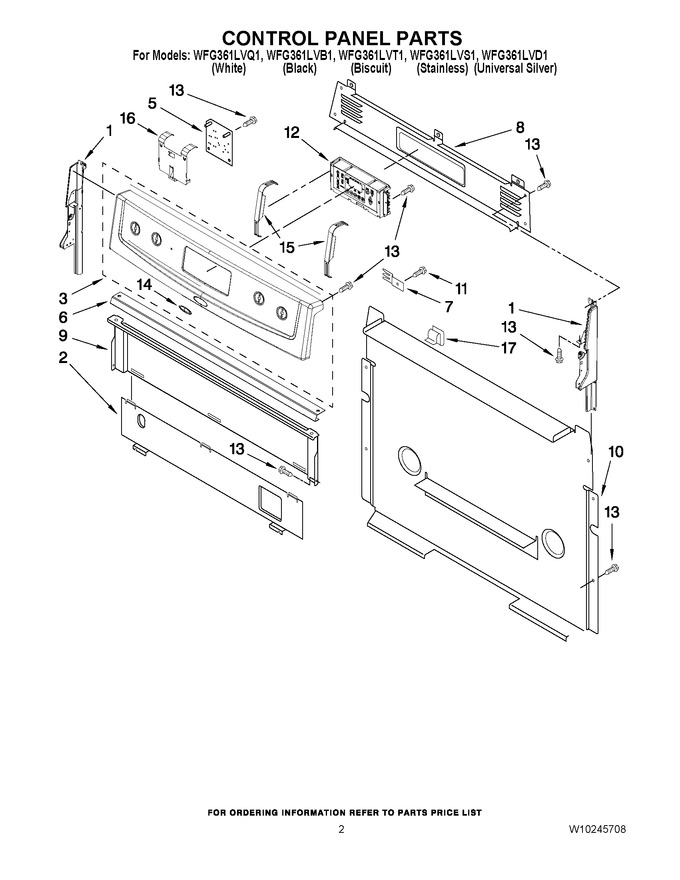

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap, Left Hand (black)   (Replaces: W10184437)				$ 131.85
1	W11230611		Endcap, Left Hand (biscuit)   (Replaces: W10184435)		Appelez-nous	-
1	W11230612		Endcap, Right Hand (biscuit)   (Replaces: W10184436)		Appelez-nous	-
1	W11219370		Endcap (right Hand White)   (Replaces: W10184434)				$ 52.14
1	W11219365		Endcap (left Hand White)   (Replaces: W10184433)				$ 36.39
1	W11219665		Endcap, Right Hand (black)   (Replaces: W10184438)				$ 36.40
2	8053505		Shield, Lower Heat				$ 142.19
3	W10184043		Panel, Control (biscuit)				$ 0.01
3	W10184045		Panel, Control (universal Silver)				$ 142.33
3	W10170637		Panel, Control (stainless)				$ 130.87
3	W10184042		Panel, Control (white)				$ 133.94
3	W10184044		Panel, Control (black)				$ 128.17
5	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 354.47
6	9762855		Brkt-mntg, Console		Appelez-nous	-
7	8523412		Bracket, Support				$ 143.91
8	W10198745		Cover, Upper				$ 110.48
9	W10192841		Shield, Heat				$ 91.45
10	W10184370		Cover, Lower		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
12	WPW10424330		Control, Range (white)   (Replaces: W10173526)				$ 373.36
12	WPW10424330		Control, Range (black)   (Replaces: W10173527)				$ 373.36
12	WPW10424330		Control, Range (biscuit)   (Replaces: W10173528)				$ 373.36
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
14	W10209617		Badge				$ 35.30
15	9762078		Brkt, Mntg Eoc				$ 38.13
16	9762726		Brkt-mntg, Dsi				$ 29.39
17	WP8273564		Clip   (Replaces: 8273564)				$ 10.85
