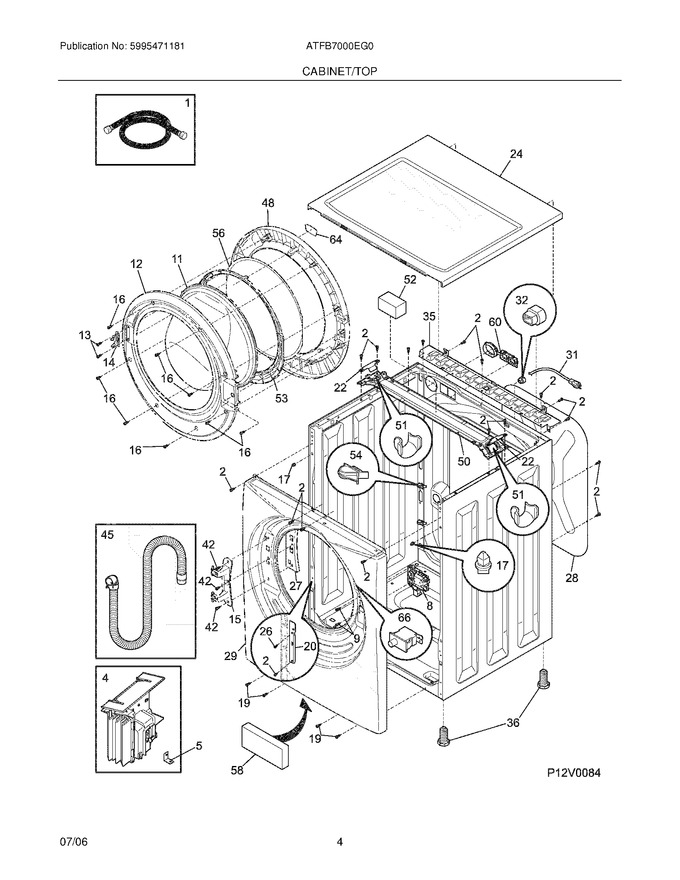

05 - Cabinet Top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	134522900		Bracket,angle ,motor Control				$ 13.01
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass				$ 313.91
12	134550702		Frame,inner Door   (Replaces: 134550740)				$ 140.34
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763302		Striker,door/lock   (Replaces: 134456640)			Immediately	$ 35.08
15	134550800		Hinge,door ,with Bushings				$ 141.75
16	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
17	134408700		Clip,assembly				$ 8.35
19	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
20	134434901		Bracket,ls Panel ,reinforcement				$ 43.73
22	134364700		Retainer,spring Steel		Appelez-nous	-
24	134365030		Panel,work Top ,blue				$ 207.32
26	134521600		Screw,hex Washer Head ,m5 0.8 X 15				$ 2.63
27	134550900		Bracket,hinge ,reinforcement				$ 60.72
28	134364300		Panel,service Access ,rear				$ 54.39
29	134550130		Panel,cabinet Front ,blue				$ 237.72
32	5303209428		Bushing,power Cord				$ 17.01
35	134365100		Bracket,top Support ,rear				$ 150.99
36	134548800		Leveling Leg,screw ,plastic			Immediately	$ 30.20
42	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces: 134601900)				$ 9.41
48	134550510		Panel,outer Door ,platinum		Appelez-nous	-
50	134364600		Bracket,tub Suspension				$ 60.64
51	134562100		Protector,tub Brkt ,spring Hook ,(2)				$ 9.56
52	131931202		Dampener,vibration ,foam				$ 17.35
53	134551300		Ring,door Transition				$ 69.40
54	134364900		Fastener,wire Harn Clip		Appelez-nous	-
56	137577700		Glass,outer Door Lens   (Replaces: 134550600)				$ 224.84
58	131800405		Insulation,noise Absorber		Appelez-nous	-
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
64	134601600		Nameplate,affinity		Appelez-nous	-
66	131843146		Switch,door ,with Drum Light				$ 28.05
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 88.20
F4	134743500		Control Board,motor   (Replaces: 134409904)			Immediately	$ 236.87
F45	134369400		Hose,drain ,external		Appelez-nous	-
F8	131763256		Door Lock/switch Assy   (Replaces: 131763245)			Immediately	$ 146.76
NI	134547600		Wiring Harness,motor Control				$ 70.09
NI	134178901		Screw,8-18ab X 0.455				$ 14.89
NI	134434900		Bracket,rs Panel ,reinforcement		Appelez-nous	-
NI	134603100		Wiring Harness,door Switch				$ 28.63
NI	134596200		Shipping Support Kit				$ 160.18
NI	134554500		Pad,outer Door				$ 14.60
NI	134591500		Plug Assy,shipping Holes ,back				$ 46.78
