Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3202416 Extrusion-center Vent Appelez-nous -
2 5303284615 Knob-thermostat Appelez-nous -
3 5303285548 Dial Thermostat Appelez-nous -
4 5303280381 Spacer-dial Appelez-nous -
5 5303279413 Switch-oven Light Appelez-nous -
6 3202285 Knob-timer Appelez-nous -
7 5303212863 Panel-control Appelez-nous -
8 3202193 Indicator Light Appelez-nous -
9 3203670 Trim-control Panel Glass Appelez-nous -
10 3202088 Bracket-timer Appelez-nous -
11 3203708 Clock Appelez-nous -
12 5303276516 Plate-instrument Mounting Appelez-nous -
13 3202093 Bumper, Rubber, (4) Appelez-nous -
14 316004100 Thermostat Appelez-nous -
15 3202418 Housing-control Appelez-nous -
16 3203677 Cover-control Housing Appelez-nous -
17 5303280339 Trim-cap (lh) Appelez-nous -
18 5303280338 Trim-cap (rh) Appelez-nous -
19 5303285549 Trim-top Appelez-nous -
20 5303016305 Bezel-switch Black Appelez-nous -
21 5303271453 Deflector Appelez-nous -

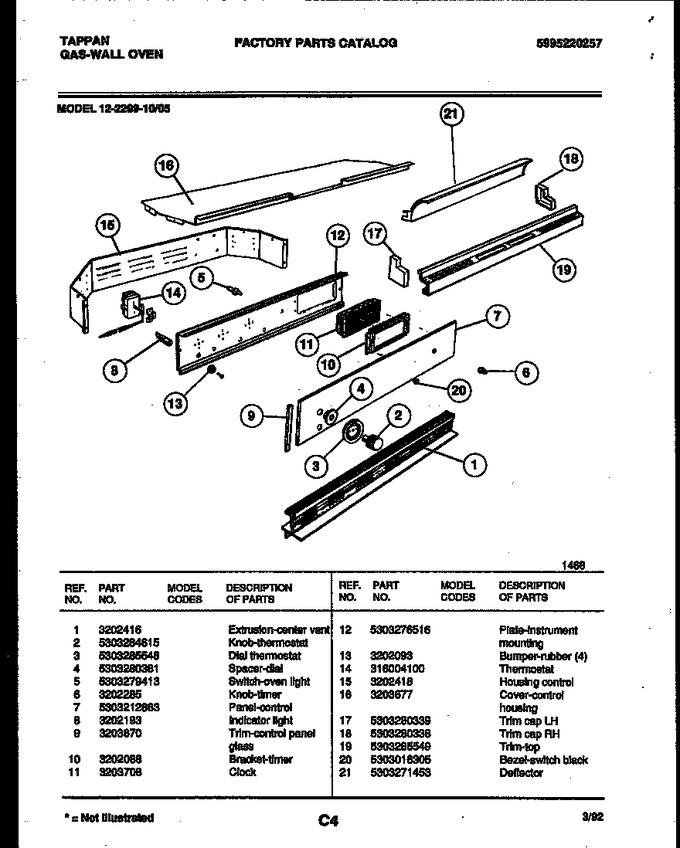

    View Diagram in Separate Window     Print Icon   Print Part List
