Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Drawer Parts
03 - Door And Drawer Parts

Diagram for 04 - Oven Chassis Parts
04 - Oven Chassis Parts

Diagram for 05 - Oven Parts, Miscellaneous Parts
05 - Oven Parts, Miscellaneous Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
5 9781692GW Panel, Door-white Appelez-nous -
8 9751136PW Handle, Door Appelez-nous -
10 9782032 Hinge, Door R Or L Appelez-nous -
12 9750685 Gasket, Glass (2) Appelez-nous -
13 9781613 Retainer, Glass (6) Appelez-nous -
14 238614 Bumper, Door   (Replaces: 9780771) Special Order $ 72.68

16 9781651 Inner Glass (2) Appelez-nous -
18 9750676 Retainer, Door Pnl Appelez-nous -
19 9781599GM Liner, Door Appelez-nous -
20 9780583 Drawer & Roller Appelez-nous -
21 9750169 Bracket, Drawer Appelez-nous -
23 WP90296 Clip   (Replaces: 90296) Special Order $ 7.07

24 9782108PW Front, Drawer Appelez-nous -
25 814229 Roller, Support   (Replaces: 423713) In-Stock Immediately $ 51.23

28 9781502 Spacer, Door (2) Appelez-nous -
29 9780265 Screw Appelez-nous -
30 3149333 Screw Special Order $ 5.33

31 9780272 Screw Appelez-nous -
32 WPW10001180 Screw   (Replaces: 9781072) Special Order $ 7.23


    View Diagram in Separate Window     Print Icon   Print Part List

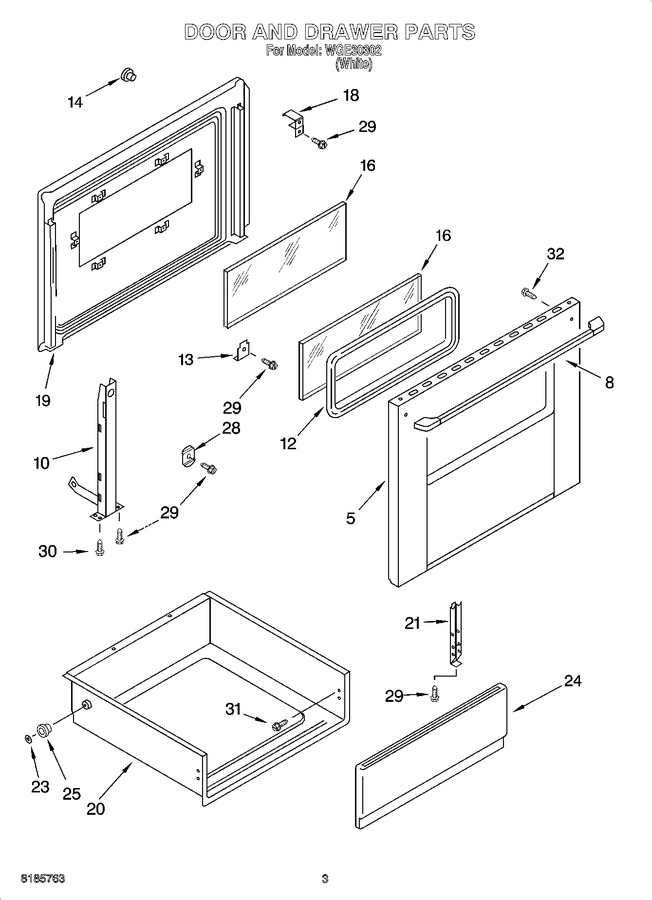

Diagram for WGE30302
