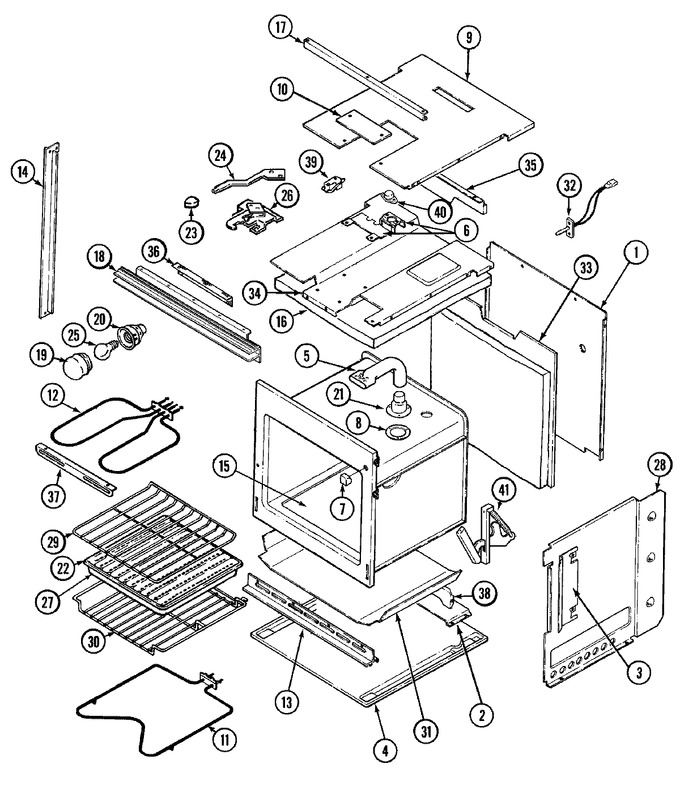

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 10 |
|
- | ||||
| 2 | 3601F005-61 | Baffle, Base | 10 |
|
- | ||||
| 3 | 3601F244-51 | Baffle, Side | 10 |
|
- | ||||
| 4 | 4003F011-80 | Base, Wall Oven | 10 |
|
- | ||||
| 4 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 5 | 8026P022-60 | Tube, Oven Vent | 10 |
|
- | ||||
| 6 | 3801F128-45 | Bracket, Hi Limit | 10 |
|
- | ||||
| 7 | 8003P009-60 | Bumper, Door (square) | 10 |
|
- | ||||
| 8 | 7201P016-60 | Gasket | 10 |
|
- | ||||
| 9 | 4005F452-51 | Cover, Box | 10 |
|
- | ||||
| 10 | 4005F160-45 | Cover, Lock | 10 |
|
- | ||||
| 11 | WPY04000066 | Element, Bake (Replaces: 7406P075-60) | 10 |
|
Immediately | $ 70.53 | |||
| 11 | WPY04000066 | Element, Bake (2400w) (Replaces: 74004073) | 25 |
|
Immediately | $ 70.53 | |||
| 11 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 12 | WP7406P203-60 | Element, Broil (Replaces: 7406P090-60) | 10 |
|
$ 154.52 | ||||
| 12 | 7201P003-60 | Gasket, Element | 10 |
|
- | ||||
| 13 | 7706P153-60 | Extrusion, Bottom (blk) | 10 |
|
- | ||||
| 13 | 74001846 | Extrusion, Bottom (blk) | 16 |
|
- | ||||
| 14 | 74001570 | Trim, Side (lt-blk) | 16 |
|
- | ||||
| 14 | 7750P103-60 | Extrusion, Side (lt-blk) | 10 |
|
- | ||||
| 14 | 7750P105-60 | Extrusion, Side (rt-blk) | 10 |
|
- | ||||
| 14 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 14 | 74001569 | Trim, Side (rt-blk) | 16 |
|
- | ||||
| 15 | 2205F003-19 | Bottom, Oven | 10 |
|
- | ||||
| 16 | 7002P154-60 | Insulation (back) | 10 |
|
- | ||||
| 16 | 7002P153-60 | Insulation (top & Rear) | 10 |
|
- | ||||
| 16 | 7002P163-60 | Insulation (bottom) | 10 |
|
- | ||||
| 17 | 7752P011-60 | Extrusion, Top (blk) | 10 |
|
- | ||||
| 18 | 7756P070-60 | Extrusion, Vent (blk) | 10 |
|
- | ||||
| 19 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 10 |
|
Immediately | $ 71.93 | |||
| 20 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 21 | 7505P226-60 | Catalyst, Burner | 10 |
|
- | ||||
| 22 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 23 | 7112P003-60 | Clip, Latch Handle | 10 |
|
- | ||||
| 23 | 7701P132-60 | Handle, Door Latch (blk) | 10 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note | 25 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note | 24 |
|
- | ||||
| 24 | 8009P011-60 | Lever, Latch | 10 |
|
- | ||||
| 24 | 74003005 | Lever, Latch (blk) | 25 |
|
- | ||||
| 25 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 26 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 10 |
|
$ 306.52 | ||||
| 26 | 8002P072-60 | Latch, Door (Replaces: 74006343) | 26 |
|
$ 306.52 | ||||
| 27 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 28 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 28 | 2618F114-51 | Panel, Side (rt) | 10 |
|
- | ||||
| 28 | 2618F113-51 | Panel, Side (lt) | 10 |
|
- | ||||
| 29 | 7801P005-60 | Rack | 10 |
|
- | ||||
| 30 | 7801P007-60 | Rack, Offset | 10 |
|
- | ||||
| 31 | 3804F104-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 32 | 12001656 | Sensor, Oven (Replaces: Y04000052) | 12 |
|
Immediately | $ 39.55 | |||
| 32 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 10 |
|
Immediately | $ 39.55 | |||
| 33 | 3804F096-51 | Retainer, Rear | 10 |
|
- | ||||
| 34 | 3804F118-51 | Retainer, Top | 10 |
|
- | ||||
| 35 | 3604F101-80 | Shield, Air | 10 |
|
- | ||||
| 36 | 3604F048-80 | Shield, Terminal | 10 |
|
- | ||||
| 37 | 3807F176-19 | Support, Broil Element | 10 |
|
- | ||||
| 38 | 3807F137-80 | Support | 10 |
|
- | ||||
| 39 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 39 | 7403P347-60 | Switch, Door Lock | 10 |
|
- | ||||
| 40 | 7403P063-60 | Switch, High Limit | 10 |
|
$ 156.41 | ||||
| 40 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 41 | 74001984 | Hinge, Door | 13 |
|
$ 126.36 | ||||
| 41 | 7106P037-60 | Hinge, Door | 10 |
|
- |
