01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

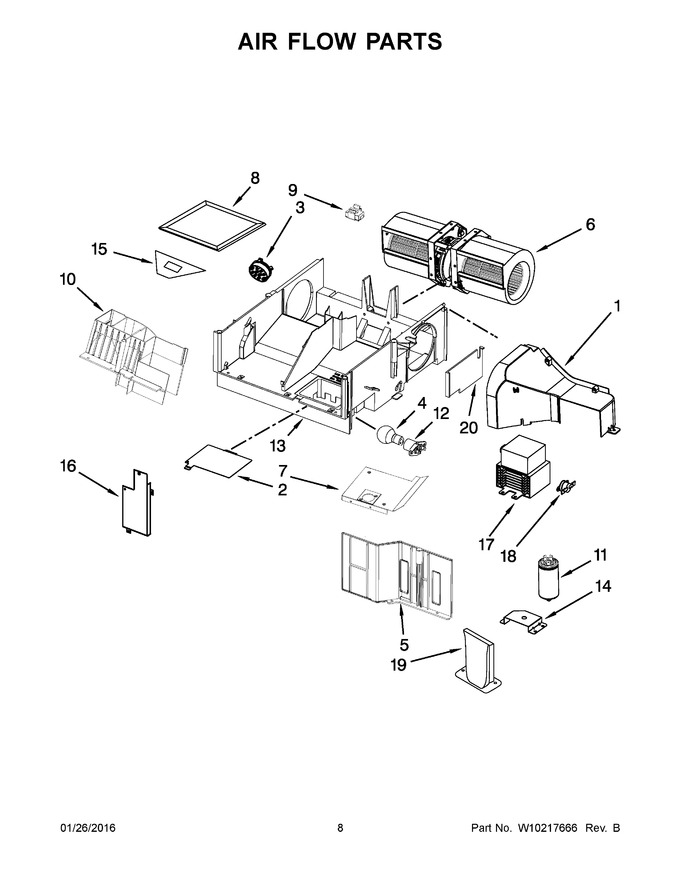

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206340 | Deflector, Air |
|
$ 146.24 | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206626 | Sensor, Humidity |
|
$ 84.84 | |||||
| 4 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 5 | W10269231 | Cover, Side Inlet (Replaces: W10210869) |
|
$ 84.09 | |||||
| 6 | W10114550 | Motor, Fan Assembly |
|
- | |||||
| 7 | W10247762 | Air Guide |
|
- | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 9 | W10110862 | Mounting Nut |
|
- | |||||
| 10 | W10158781 | Air Guide,plate |
|
- | |||||
| 11 | 8206624 | Filter, Noise |
|
$ 38.80 | |||||
| 12 | WPW10210878 | Holder, Lamp Cavity (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 13 | W10243953 | Base Plate, Air Guide |
|
- | |||||
| 14 | W10156815 | Bracket, Filter |
|
$ 54.90 | |||||
| 15 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 16 | W10247764 | Cover, Cavity Air Guide Inlet |
|
- | |||||
| 17 | W10754299 | Magnetron (Replaces: W10216360) |
|
Immediately | $ 208.09 | ||||
| 18 | W10598693 | Thermostat, Magnetron (Replaces: 8206342) |
|
$ 55.94 | |||||
| 19 | W10164716 | Plate, Waterproof |
|
$ 30.03 | |||||
| 20 | W10210884 | Cover, Right Duct |
|
- |
