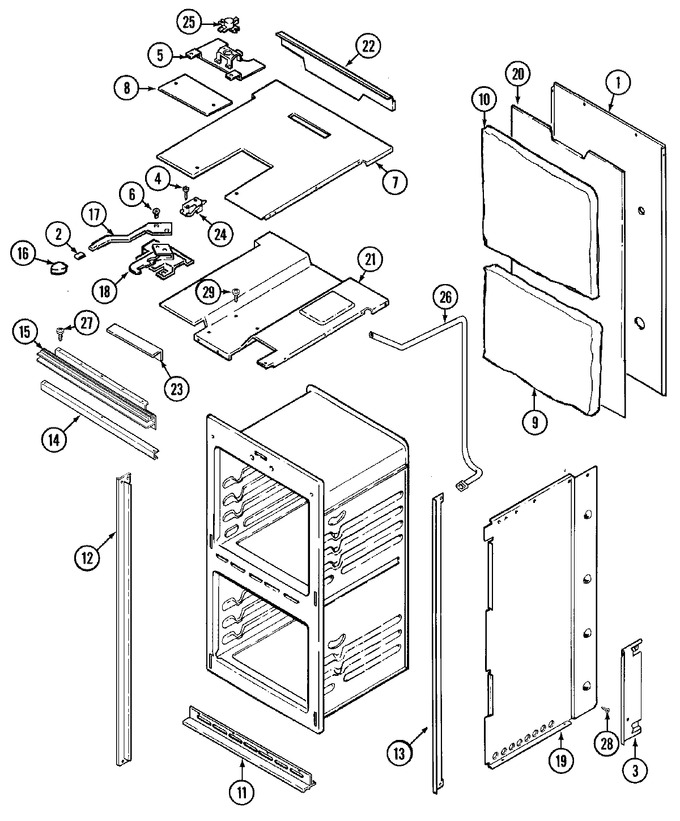

01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 1 | 4002F143-51 | Back, Main | 10 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note | 25 |
|
- | ||||
| 2 | 7112P003-60 | Clip, Latch Handle | 10 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note | 24 |
|
- | ||||
| 3 | 3601F244-51 | Baffle, Side | 10 |
|
- | ||||
| 4 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 5 | 3801F128-45 | Bracket, Hi Limit | 10 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 7 | 4005F452-51 | Cover, Box | 10 |
|
- | ||||
| 8 | 4005F160-45 | Cover, Lock | 10 |
|
- | ||||
| 9 | 7002P163-60 | Insulation (bottom) | 10 |
|
- | ||||
| 10 | 7002P157-60 | Insulation, Wrapper | 10 |
|
- | ||||
| 10 | 7002P154-60 | Insulation (back) | 10 |
|
- | ||||
| 11 | 74001859 | Extrusion, Bottom (chr) | 15 |
|
- | ||||
| 11 | 74001846 | Extrusion, Bottom (blk) | 17 |
|
- | ||||
| 11 | 7706P075-60 | Extrusion, Bottom (chr) | 10 |
|
- | ||||
| 12 | 74001568 | Trim, Side (lt-chr) | 15 |
|
- | ||||
| 12 | 7750P108-60 | Extrusion, Side (lt-chr) | 10 |
|
- | ||||
| 13 | 7750P110-60 | Extrusion, Side (rt-wht) | 10 |
|
- | ||||
| 13 | 74001567 | Trim, Side (rt-chr) | 15 |
|
- | ||||
| 14 | 7752P012-60 | Extrusion, Top (wht) | 10 |
|
- | ||||
| 15 | 7756P024-60 | Extrusion, Vent (wht) | 10 |
|
- | ||||
| 16 | W10124350 | Not Required Part Or See Note | 24 |
|
- | ||||
| 16 | 7701P133-60 | Handle, Door Latch (wht) | 10 |
|
- | ||||
| 17 | 8009P011-60 | Lever, Latch | 10 |
|
- | ||||
| 17 | 74002973 | Lever, Latch (gry) | 24 |
|
- | ||||
| 18 | 8002P072-60 | Latch, Door (Replaces: 74006343) | 28 |
|
$ 306.52 | ||||
| 18 | 7003P001-60 | Insulator | 10 |
|
- | ||||
| 18 | 3801F127-51 | Bracket, Door Latch | 10 |
|
- | ||||
| 18 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 10 |
|
$ 306.52 | ||||
| 19 | 2618F116-51 | Panel, Side (lt) | 10 |
|
- | ||||
| 19 | 2618F115-51 | Panel, Side (rt) | 10 |
|
- | ||||
| 20 | 3804F105-51 | Retainer, Rear | 10 |
|
- | ||||
| 21 | 3804F118-51 | Retainer, Top | 10 |
|
- | ||||
| 22 | 3604F101-80 | Shield, Air | 10 |
|
- | ||||
| 23 | 3604F048-80 | Shield, Terminal | 10 |
|
- | ||||
| 24 | 7403P347-60 | Switch, Door Lock | 10 |
|
- | ||||
| 25 | 7403P063-60 | Switch, High Limit | 10 |
|
$ 156.41 | ||||
| 26 | 8026P014-60 | Tube, Oven Vent | 10 |
|
- | ||||
| 27 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 28 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 29 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 10 |
|
Immediately | $ 6.47 | |||
| 29 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 29 | 5170P185-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 29 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 29 | 7101P082-60 | Screw | 10 |
|
- | ||||
| 29 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 10 |
|
Immediately | $ 31.65 |
