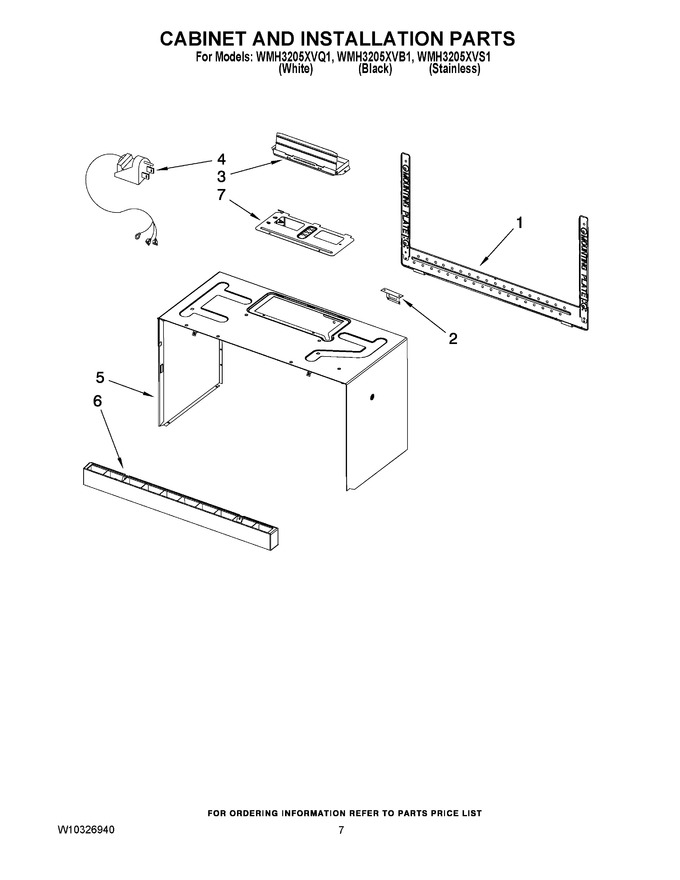

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10245177) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | 8206388 | Cord, Power |
|
$ 78.08 | |||||
| 5 | WPW10245176 | Case, Outer (black) (Replaces: W10245176) |
|
$ 198.23 | |||||
| 5 | WPW10244765 | Case, Outer (white) (Replaces: W10244765) |
|
$ 198.23 | |||||
| 6 | W10245218 | Grille, Vent (black) |
|
$ 89.96 | |||||
| 6 | W10245216 | Grille, Vent (stainless) |
|
$ 124.00 | |||||
| 6 | W10245217 | Grille, Vent (white) |
|
$ 90.84 | |||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| NI | 8205948 | Installation, Hardware |
|
$ 23.06 | |||||
| NI | W10190018 | Template, Upper |
|
Immediately | $ 6.47 | ||||
| NI | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10250237 | Main Harness |
|
- | |||||
| NI | W10107760 | Grnd Wire, Filter |
|
- | |||||
| NI | W10245226 | Hdlmp/tt Wire Assy |
|
- |
