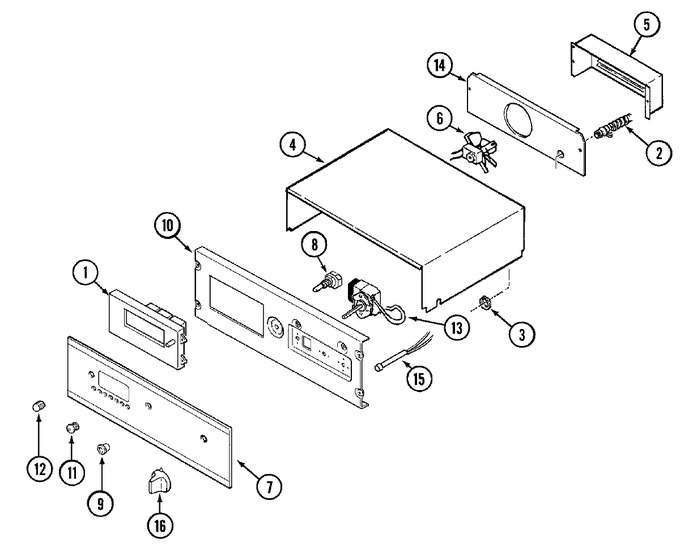

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door (upper)


05 - Oven


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
1	8010P100-60		Spacer	10	Appelez-nous	-
1	7601P281-60		Clock	10	Appelez-nous	-
2	3414F037-44		Tubing, 1/2 X 48`` Flexible	10	Appelez-nous	-
3	7417P017-60		Connector, Cable	10			$ 9.81
4	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
4	4005F150-51		Cover, Wire	10	Appelez-nous	-
5	4005F262-51		Cover, Fan	10	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
6	7427P010-60		Fan Assy.	10	Appelez-nous	-
6	8008P004-60		Grommet	10	Appelez-nous	-
6	7101P239-60		Screw	10	Appelez-nous	-
7	7912P088-60		Glass, Control Panel (blk)	10	Appelez-nous	-
8	7403P109-60		Switch, Push (blk)	10	Appelez-nous	-
8	74007948		Switch, Light (blk)xsee Note	29	Appelez-nous	-
8	7101P279-60		Screw W/washer	10	Appelez-nous	-
9	7214P007-60		Sleeve, Switch (blk)	10	Appelez-nous	-
10	7208P008-60		Seal	10	Appelez-nous	-
10	3605F195-80		Plate, Backing	10	Appelez-nous	-
10	74007897		Plate, Backing	28	Appelez-nous	-
10	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
11	7711P490-60		Button, Clock (blk)	10	Appelez-nous	-
12	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P492-60)	10			$ 12.13
13	7404P042-60		Thermostat, Lower	10	Appelez-nous	-
14	3605F164-51		Plate, Conduit	10	Appelez-nous	-
15	7407P105-60		Light, Signal	10	Appelez-nous	-
16	7711P291-60		Knob (chr)	10	Appelez-nous	-
17	74007946		Harness, Wire	29	Appelez-nous	-
17	5125A390-60		Harness, Loose Wire	10	Appelez-nous	-
17	5170D220-60		Harness, Main	10	Appelez-nous	-
18	8112P119-60		Manual, Use & Care	10	Appelez-nous	-
