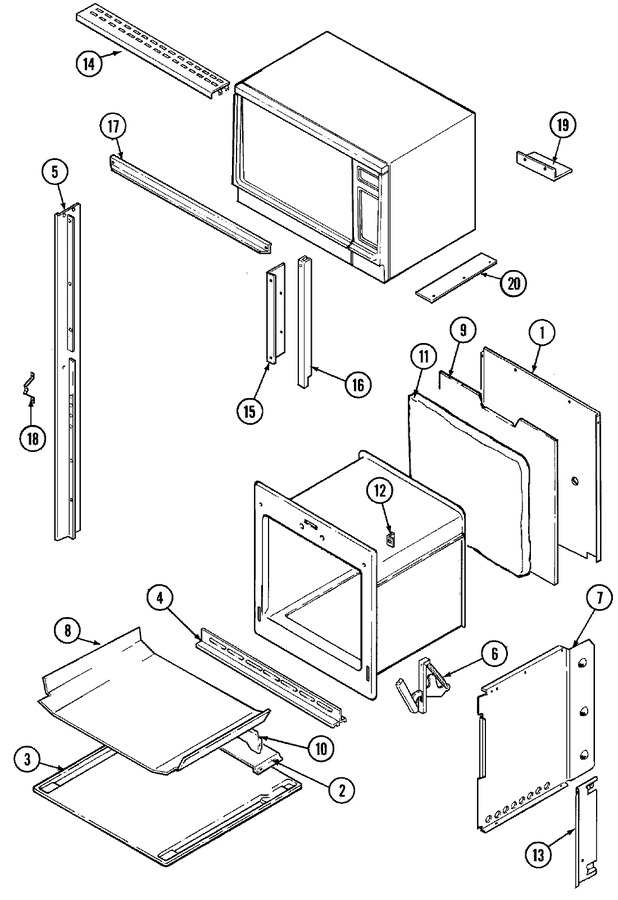

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 1 | 4002F121-51 | Back, Main | 01 |
|
- | ||||
| 2 | 3601F005-61 | Baffle, Base | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 01 |
|
$ 12.69 | ||||
| 3 | 74001845 | Base, Oven | 01 |
|
- | ||||
| 4 | 7706P153-60 | Extrusion, Bottom (blk) | 01 |
|
- | ||||
| 4 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 5 | 7750P038-60 | Extrusion Right | 01 |
|
- | ||||
| 5 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 01 |
|
$ 9.89 | ||||
| 5 | 7750P037-60 | Trim, Side (lt) | 01 |
|
- | ||||
| 5 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 6 | 7106P037-60 | Hinge, Door | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 7 | 2618F053-51 | Panel, Side (rt) | 01 |
|
- | ||||
| 7 | 2618F054-51 | Panel, Side (lt) | 01 |
|
- | ||||
| 7 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | 3804F104-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | 3804F096-51 | Retainer, Rear | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 10 | 3807F137-80 | Support | 01 |
|
- | ||||
| 11 | 7002P163-60 | Insulation (bottom) | 01 |
|
- | ||||
| 11 | 7002P154-60 | Insulation (back) | 01 |
|
- | ||||
| 11 | 7002P153-60 | Insulation (top & Rear) | 01 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 7112P020-60 | Clip, Oven Front | 01 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 13 | 3601F244-51 | Baffle, Side | 01 |
|
- | ||||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 14 | 7752P013-60 | Extrusion, Top | 01 |
|
- | ||||
| 15 | 3801F073-51 | Bracket, Microwave | 01 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 16 | 7706P148-60 | Extrusion, Side Filler (lt) | 01 |
|
- | ||||
| 16 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 16 | 7706P149-60 | Extrusion, Side Filler (rt) | 01 |
|
- | ||||
| 17 | 7706P151-60 | Extrusion, Filler (top) | 01 |
|
- | ||||
| 17 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 18 | 8004P005-60 | Support, Glass | 01 |
|
- | ||||
| 18 | 7101P082-60 | Screw | 01 |
|
- | ||||
| 19 | 74002212 | Bracket, Microwave Retainer | 01 |
|
- | ||||
| 20 | 7103P040-60 | Nut, Snap (wht) | 01 |
|
- | ||||
| 20 | 7401P003-60 | Block, Terminal----na | 01 |
|
- | ||||
| 20 | 74002213 | Shield, Microwave Bottom | 01 |
|
- | ||||
| 20 | 7103P051-60 | Nut, Snap | 01 |
|
- |
