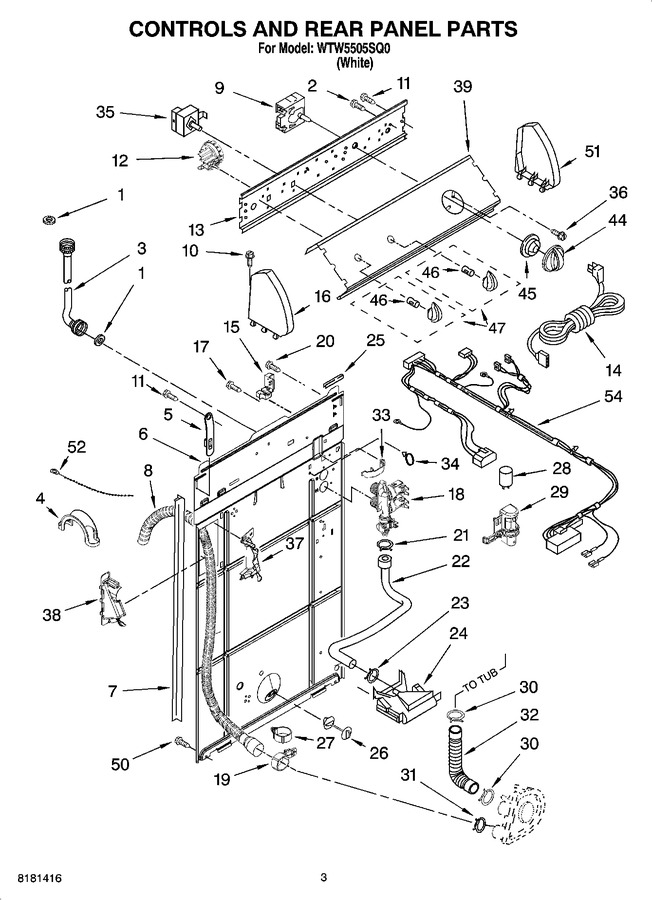

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (Replaces: 3976300) |
|
$ 6.93 | |||||
| 2 | 3400073 | Screw, Ground |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (cold) (Replaces: 8571377) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet (hot) (Replaces: 8571378) |
|
Immediately | $ 21.68 | ||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.17 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.00 | |||||
| 6 | 8541686 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 19 & 27 (Replaces: 8559373) |
|
Immediately | $ 60.64 | ||||
| 9 | 8557226 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
$ 181.20 | |||||
| 10 | WP388326 | Screw, 8-18 X 1.25 (Replaces: 388326) |
|
$ 7.30 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 12 | 8577846 | Switch, Water Level |
|
- | |||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | W10820044 | Cord, Power (includes Item 15) (Replaces: 8578842) |
|
$ 128.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 17 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 18 | WP3979346 | Valve, Water Inlet W/bi-metal (Replaces: 8578342) |
|
Immediately | $ 69.19 | ||||
| 19 | 8541668 | Clamp, Hose |
|
$ 19.13 | |||||
| 20 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 7.56 | ||||
| 22 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 21.32 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 67.75 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.01 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 72.13 | ||||
| 29 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 33 | 3349557 | Retainer, Harness |
|
- | |||||
| 34 | 8559320 | Restraint, Hose |
|
$ 41.27 | |||||
| 35 | WP8578337 | Switch, Water Temperature (Replaces: 8578337) |
|
$ 121.72 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.16 | |||||
| 37 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 60.64 | ||||
| 38 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 60.64 | ||||
| 39 | 8578805 | Panel, Console |
|
- | |||||
| 44 | WP8566022 | Knob, Timer (Replaces: 8566022) |
|
$ 57.07 | |||||
| 45 | WP8566018 | Dial, Timer (Replaces: 8566018) |
|
$ 45.94 | |||||
| 46 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.03 | ||||
| 47 | 8565944 | Knob, Control |
|
$ 25.10 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 52 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.11 | |||||
| 54 | 3958098 | Harness, Wiring (for Detail See Page 9 & 10) |
|
- |
