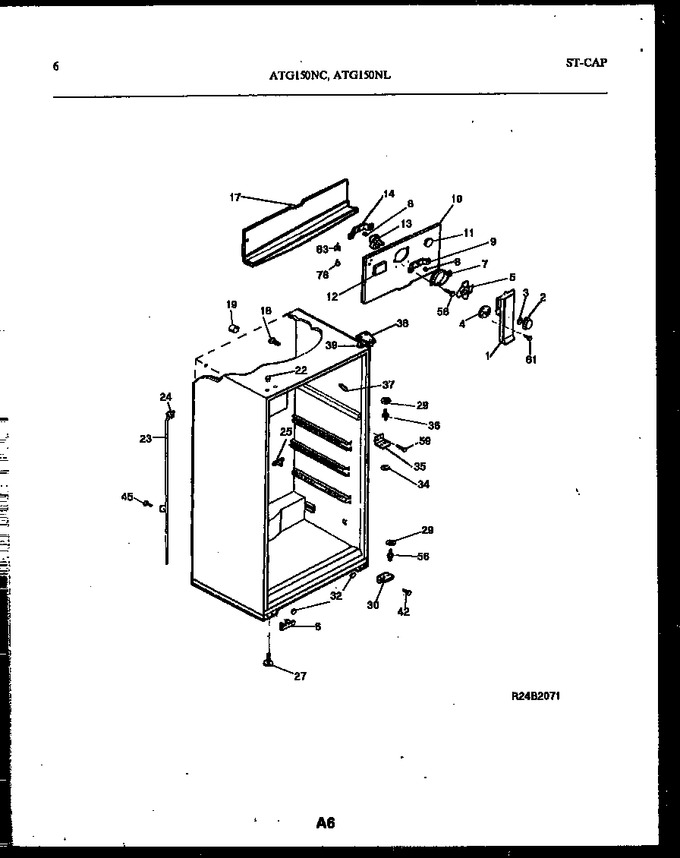

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	3206134		Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1		Appelez-nous	-
78	5303210353		Screw, Connectr Brkt, Hex Washer Head, 8, 32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
*62697	5308016571		Plug-button, Liner				$ 4.79
*62697	5303210622		Pad-rear Base		Appelez-nous	-
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
