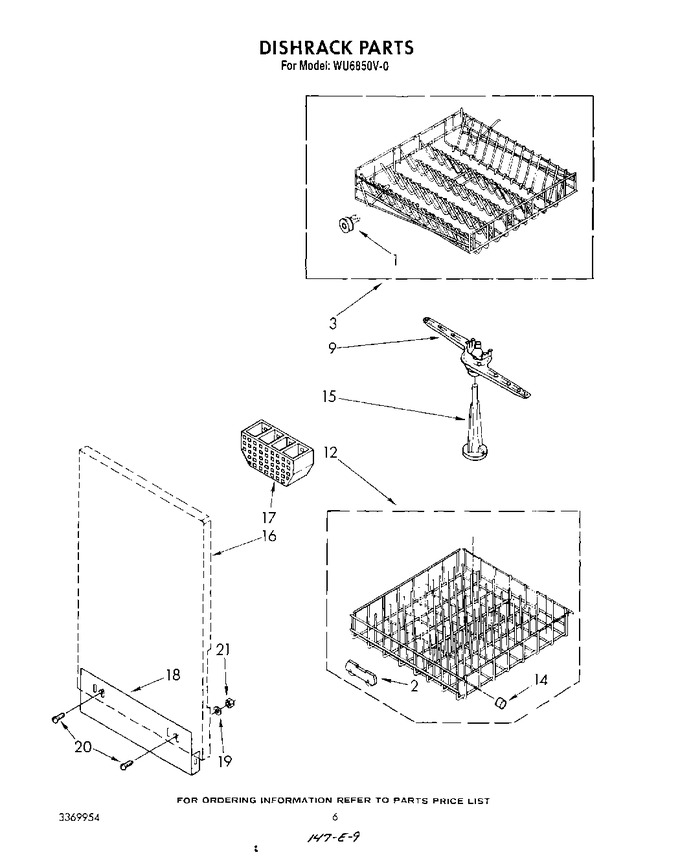

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Axle Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Shroud Assembly (4)   (Replaces: 3368747)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 3369945)			Immediately	$ 182.83
9	304204		Spray Arm Assembly				$ 67.61
12	W10311986		Dishrack, Lower   (Replaces: 3368673)			Immediately	$ 169.33
14	717970		Bumper		Appelez-nous	-
15	304170		Tower				$ 72.38
16	N/A		Panel, Reversible Side		Appelez-nous	-
17	WP8539066		Silverware Basket   (Replaces: 3367117)				$ 91.31
18	3367549		Panel, Lower Side		Appelez-nous	-
19	W11089212		Washer (2)   (Replaces: 12035)				$ 8.70
20	9419621		Screw (2)				$ 5.60
21	W10080180		Nut (2)   (Replaces: 965176)				$ 12.13
