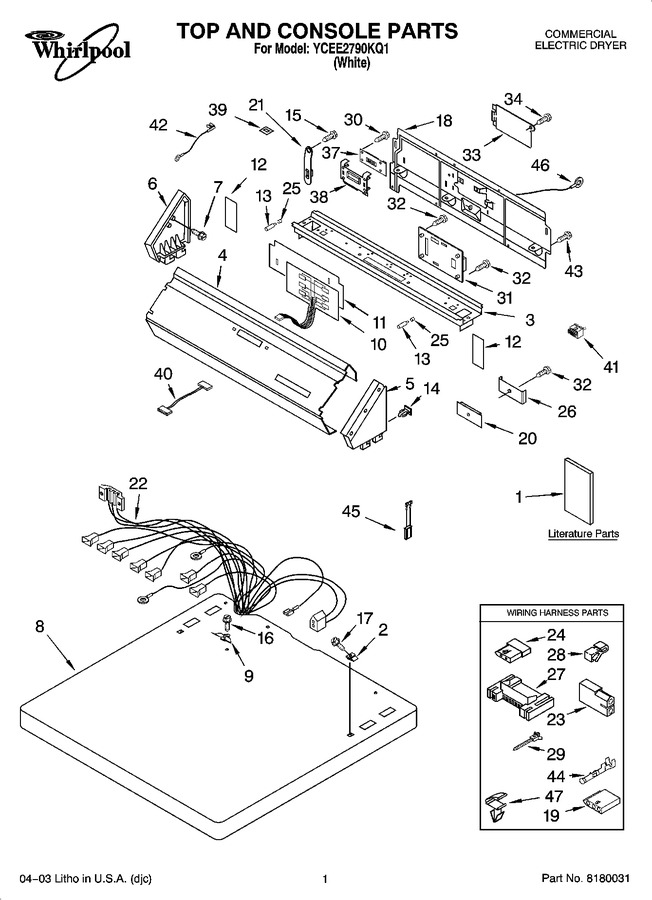

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8527810		Literature Parts (instructions. Installation)		Appelez-nous	-
1	LIT8527811		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8527860		Literature Parts (wiring Diagram)		Appelez-nous	-
2	WP357213		Nut,push-in   (Replaces: 357213)				$ 6.65
3	3978881		Bracket, Control		Appelez-nous	-
4	8527821		Panel, Control		Appelez-nous	-
5	3949737		Cap, End (r.h.)				$ 49.53
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 7.20
8	3978884		Top		Appelez-nous	-
9	3355753		Clip, Static Ground		Appelez-nous	-
10	3407171		Switch, Membrane		Appelez-nous	-
11	3950773		Backer Plate		Appelez-nous	-
12	3950775		Backer Plate, Side (2)		Appelez-nous	-
13	3950774		Mounting Stud		Appelez-nous	-
14	689559		Nut, Push-in		Appelez-nous	-
15	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
16	WP355214		Screw 8-18 X 11/32   (Replaces: 3393918)			Immediately	$ 7.26
17	8281182		Screw 8-18 X 1-1/4				$ 5.33
18	285909		Panel, Rear (upper)   (Replaces: 8317305)				$ 224.07
19	3936144		Connector (3-circuit)				$ 18.19
20	3955405		Plug, Panel		Appelez-nous	-
21	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.00
22	8529986		Harness, Main		Appelez-nous	-
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	717253		Receptacle (2-way)		Appelez-nous	-
25	3951768		Cap, Stud		Appelez-nous	-
26	3955406		Plug, Retainer		Appelez-nous	-
27	3395683		Housing Connector			Immediately	$ 46.67
28	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
29	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
30	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
31	3407165		Board, Control				$ 351.31
32	WPW10366705		Screw, 8-32 X 7/8``   (Replaces: 3393909)				$ 6.75
33	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 115.52
34	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
37	3407166		Board, Display		Appelez-nous	-
38	3406980		Lens, Display		Appelez-nous	-
39	3363338		Clip (3)		Appelez-nous	-
40	3955147		Wire Harness (display)		Appelez-nous	-
41	3955146		Harness Jumper (controller)		Appelez-nous	-
42	3401706		Wire, Ground (control Board)		Appelez-nous	-
43	WP3351614		Screw, 10-24 X 1/2 (ground)   (Replaces: 90864)			Immediately	$ 6.26
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
45	3406197		A.c. Line Filter		Appelez-nous	-
46	3398893		Ground Wire		Appelez-nous	-
47	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
