SELECT A DIAGRAM

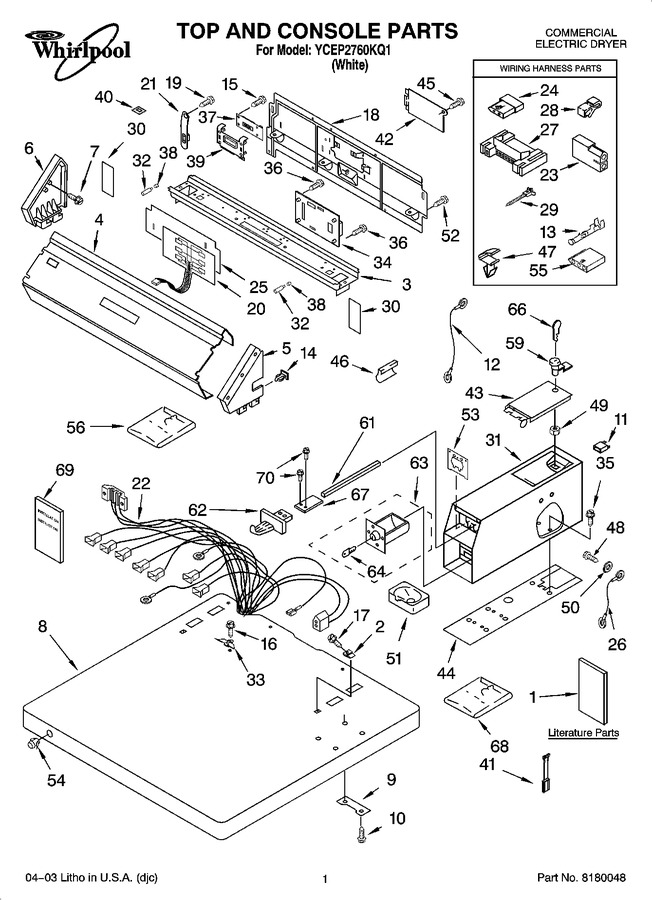

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528107		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8527807		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8530961		Literature Parts (wiring Diagram)		Appelez-nous	-
2	WP357213		Nut,push-in   (Replaces: 357213)				$ 6.65
3	3950800		Bracket, Control		Appelez-nous	-
4	8527822		Panel, Control		Appelez-nous	-
5	8316516		Cap, End (r.h.)		Appelez-nous	-
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 7.20
8	3954665		Top				$ 145.66
9	3347825		Plate-mounting (2)		Appelez-nous	-
10	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
11	3402784		Switch, Diagnostic				$ 8.09
12	3397996		Wire, Ground		Appelez-nous	-
13	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
14	689559		Nut, Push-in		Appelez-nous	-
15	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
16	WP355214		Screw 8-18 X 11/32   (Replaces: 3393918)			Immediately	$ 7.26
17	8281182		Screw 8-18 X 1-1/4				$ 5.33
18	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 256.84
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
20	3407158		Switch, Membrane				$ 195.17
21	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.00
22	8529988		Harness, Main		Appelez-nous	-
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	717253		Receptacle (2-way)		Appelez-nous	-
25	3950773		Backer Plate		Appelez-nous	-
26	340025		Wire, Ground (meter Box)		Appelez-nous	-
27	3395683		Housing Connector			Immediately	$ 46.67
28	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
29	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
30	3950775		Backer Plate, Side (2)		Appelez-nous	-
31	WPW10461200		Case, Meter   (Replaces: 3406994)			Immediately	$ 344.90
32	3950774		Mounting Stud		Appelez-nous	-
33	3355753		Clip, Static Ground		Appelez-nous	-
34	3407149		Board, Control		Appelez-nous	-
35	W11715721		Screw, 5/16-24 X 1   (Replaces: 3349065)				$ 6.41
36	WPW10366705		Screw, 8-32 X 7/8``   (Replaces: 3393909)				$ 6.75
37	3407150		Board, Display		Appelez-nous	-
38	3951768		Cap, Mounting Stud		Appelez-nous	-
39	3949599		Lens, Display		Appelez-nous	-
40	3363338		Clip		Appelez-nous	-
41	3406197		A.c. Inline Filter		Appelez-nous	-
42	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 115.52
43	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
44	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
45	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
46	686770		Protector Support		Appelez-nous	-
47	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
48	339805		Screw, 10-32 X 1/16				$ 12.05
49	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
50	W11170663		Washer   (Replaces: 3400900)				$ 3.89
51	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
52	WP3390631		Screw, 10-16 X 5/16   (Replaces: 339554)				$ 7.04
53	279950		Chute Adapter Plate Assembly (includes Illus. 51)   (Replaces: 3954761)			Immediately	$ 26.00
54	387371		Lock, Plug Also Available				$ 11.36
54	358290		Top Lock		Appelez-nous	-
55	3936144		Connector (3-circuit)				$ 18.19
56	WP3406965		Kit, Vertical 8-coin (includes Illus. 59-62-63 66-67-68 & 69)   (Replaces: 3954807)			Immediately	$ 358.66
59	W11315637		Security Lock/key And Cam Assembly   (Replaces: 8316526)			Immediately	$ 36.42
61	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 67.13
62	8316265		Inserts (not Shown) (25¢)		Appelez-nous	-
62	W11126319		Slide Mechanism (vertical 8-coin) (dollar Vend)   (Replaces: 8316520)			Immediately	$ 279.80
62	W11312584		Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 28.26
63	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 160.25
67	3390424		Extension   (Replaces: 8316523)			Immediately	$ 61.43
68	8316524		Kit, Decal		Appelez-nous	-
69	8316532		Installation Instructions Coin Kit		Appelez-nous	-
70	3400086		Screw, 10-32 X 3/8				$ 12.77

    View Diagram in Separate Window       Print Part List
