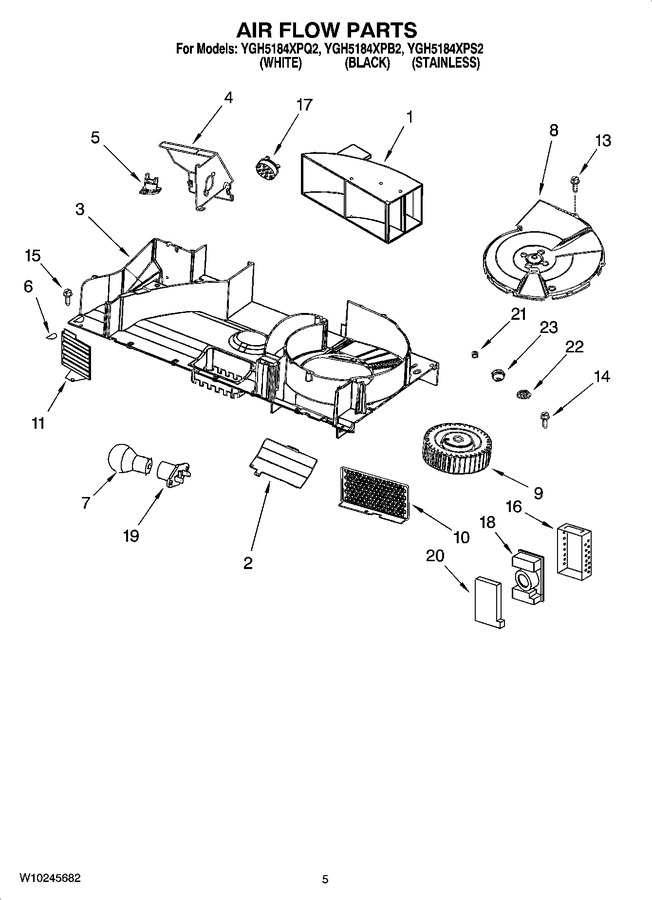

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184667 | Deflector, Air |
|
- | |||||
| 2 | W10110593 | Cover, Lamp |
|
- | |||||
| 3 | 8185350 | Duct, Air |
|
- | |||||
| 4 | 8204789 | Bracket, Thermostat |
|
- | |||||
| 5 | 8183999 | Thermostat |
|
- | |||||
| 6 | 8204676 | Cover |
|
- | |||||
| 7 | 8206232A | Lamp (Replaces: 8183993) |
|
Immediately | $ 6.61 | ||||
| 8 | 8184884 | Cover, Fan |
|
- | |||||
| 9 | W10114253 | Motor, Fan Assy |
|
$ 190.11 | |||||
| 10 | 8204754 | Shield |
|
- | |||||
| 11 | 8206460 | Shield |
|
- | |||||
| 13 | WP4393834 | Screw (Replaces: 4393834) |
|
$ 6.47 | |||||
| 14 | 8184198 | Screw |
|
- | |||||
| 15 | 8169474 | Screw |
|
$ 8.51 | |||||
| 16 | W10114258 | Holder-noise Fltr |
|
- | |||||
| 17 | 8206446 | Humidity, Sensor |
|
$ 84.51 | |||||
| 18 | 8205853 | Filter |
|
- | |||||
| 19 | W10244596 | Holder, Lamp |
|
- | |||||
| 20 | W10114259 | Cvr Plt-noisefltr |
|
- | |||||
| 21 | 8184129 | Spacer, Copper Pipe |
|
- | |||||
| 22 | 8204674 | Plate, Damper |
|
- | |||||
| 23 | 8169635 | Cushion, Mtr |
|
- |
