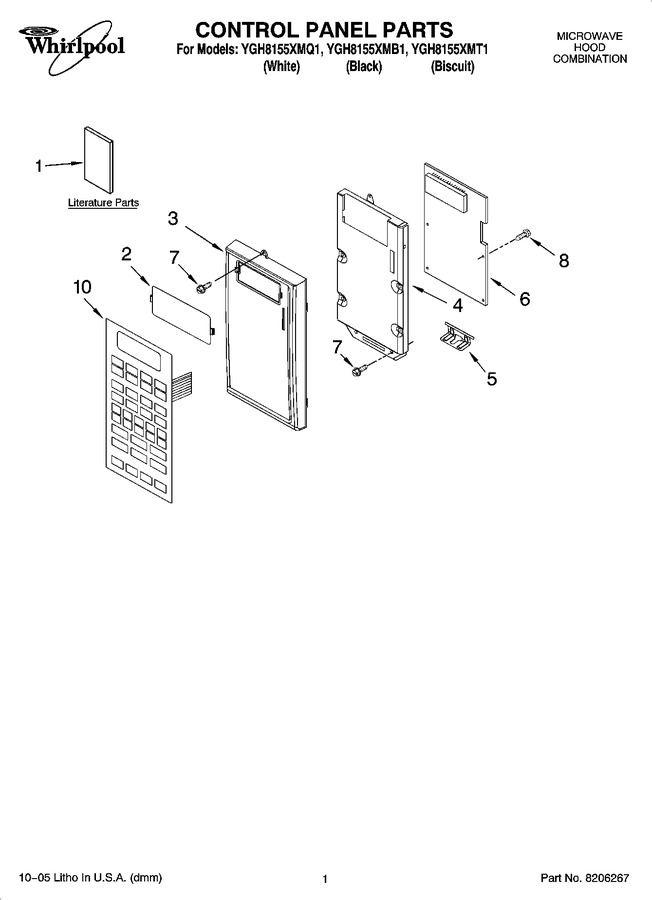

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8185486 | Use & Care Guide |
|
- | |||||
| 1 | 8183879 | Installation Instructions |
|
- | |||||
| 1 | 8185488 | Tech Sheet |
|
- | |||||
| 1 | 8185487 | Cooking Guide Label (english) |
|
- | |||||
| 1 | 8204747 | Cooking Guide Label (french) |
|
- | |||||
| 2 | 8183724 | Lens (biscuit Model) |
|
- | |||||
| 2 | 8183708 | Lens (b/q Models) |
|
- | |||||
| 3 | 8183709 | Panel, Control (black) |
|
- | |||||
| 3 | 8183725 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 8183710 | Panel, Control (white) |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8204859 | Microcomputer |
|
$ 176.23 | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 10 | 8204779 | Switch, Membrane (biscuit) |
|
- | |||||
| 10 | 8204777 | Switch, Membrane (white) |
|
- | |||||
| 10 | 8204778 | Switch, Membrane (black) |
|
- |
