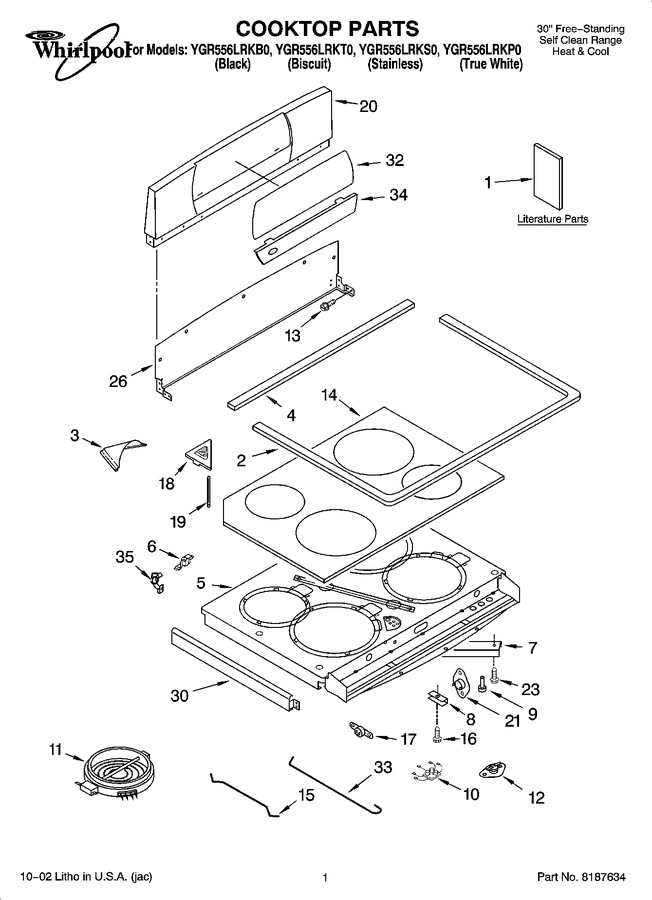

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9755129 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT9755084 | Use & Care Guide (english) |
|
- | |||||
| 1 | LIT9755084F | Use & Care Guide (french) |
|
- | |||||
| 1 | LIT9755067 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT9755063 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT9755145 | Quick Ref. Guide (english) |
|
- | |||||
| 1 | LIT9755145F | Quick Ref. Guide (french) |
|
- | |||||
| 1 | LIT9752775 | Literature Parts (template, Anti-tip) |
|
- | |||||
| 2 | WP9780939 | Gasket (Replaces: 9754102) |
|
Immediately | $ 60.83 | ||||
| 3 | 9755142 | Deflec, Vent |
|
- | |||||
| 4 | 9755118 | Gasket, Cooktop (gray) |
|
- | |||||
| 4 | 9755093 | Gasket, Cooktop (black) |
|
- | |||||
| 5 | 9755331 | Support, Element (p Model Only) |
|
- | |||||
| 5 | 9752892 | Support, Element (b, T, S Models) |
|
- | |||||
| 6 | 9752003 | Washer, Pivot |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9753691 | Clip, Support (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (4) (white) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 9 | 238614 | Bumper, Rubber (4) (black) (Replaces: 9780771) |
|
$ 72.68 | |||||
| 10 | 9781936 | Hot Light |
|
- | |||||
| 11 | W10823699 | Element, Surface (1500w - Lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 11 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8523693) |
|
Immediately | $ 204.83 | ||||
| 11 | W10823697 | Element, Surface (2200w - Rr) (Replaces: 8523694) |
|
$ 326.21 | |||||
| 11 | W10823698 | Element, Surface (1800w - Rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 12 | WP4450934 | Thermostat, Fixed (Replaces: 4450934) |
|
$ 195.44 | |||||
| 13 | 9780265 | Screw |
|
- | |||||
| 14 | 9755133CC | Cooktop, Ceran (biscuit) |
|
- | |||||
| 14 | 9755133CB | Cooktop, Ceran (black) |
|
- | |||||
| 14 | 9755133CW | Cooktop, Ceran (true White) |
|
- | |||||
| 15 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 16 | 9751871 | Screw |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 17 | 9780265 | Screw, (4) |
|
- | |||||
| 18 | 9755391 | Cover, Vent (black) |
|
- | |||||
| 18 | 9755393 | Cover, Vent (gray) |
|
- | |||||
| 19 | 9751841 | Gasket, Vent Cover (black) |
|
- | |||||
| 19 | 9755184 | Gasket, Vent Cover (gray) |
|
- | |||||
| 20 | 9755038PW | Backsplash (white) |
|
- | |||||
| 20 | 9755038PB | Backsplash (black) |
|
- | |||||
| 20 | 9755038PC | Backsplash (biscuit) |
|
- | |||||
| 20 | 9755038SS | Backsplash (stainless) |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 23 | 9780272 | Screw |
|
- | |||||
| 26 | 9755042 | Cover, Backsplash |
|
- | |||||
| 30 | 9755059PB | Trim, Cooktop (right Hand) (black) |
|
- | |||||
| 30 | 9755059PC | Trim, Cooktop (right Hand) (biscuit) |
|
- | |||||
| 30 | 9755059SS | Trim, Cooktop (right Hand) (stainless) |
|
- | |||||
| 30 | 9755060PW | Trim, Cooktop (left Hand) (white) |
|
- | |||||
| 30 | 9755060PB | Trim, Cooktop (left Hand) (black) |
|
- | |||||
| 30 | 9755060PC | Trim, Cooktop (left Hand) (biscuit) |
|
- | |||||
| 30 | 9755060SS | Trim, Cooktop (left Hand) (stainless) |
|
- | |||||
| 30 | 9755059PW | Trim, Cooktop (right Hand) (white) |
|
- | |||||
| 32 | 9755035PC | Glass, Backsplash (biscuit) |
|
- | |||||
| 32 | 9755035PW | Glass, Backsplash (white) |
|
- | |||||
| 32 | 9755035PB | Glass, Backsplash (black) |
|
- | |||||
| 33 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 34 | 9755455CC | Panel, Accent With Badge Asy (biscuit Model (t)) |
|
- | |||||
| 34 | 9755455CB | Panel, Accent With Badge Asy (black/stls (b, S)) |
|
- | |||||
| 34 | 9755455CW | Panel, Accent With Badge Asy (white Model (p)) |
|
- | |||||
| 35 | WP98997 | Clip, Wire (Replaces: 98997) |
|
$ 9.98 |
